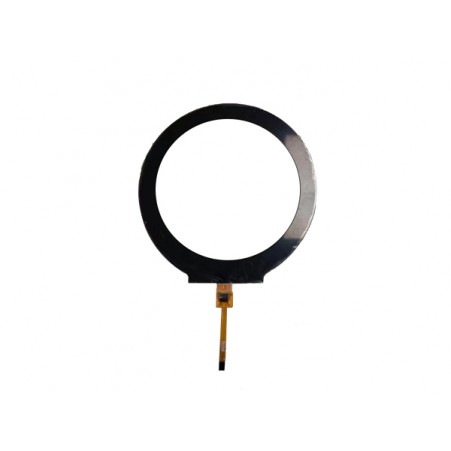

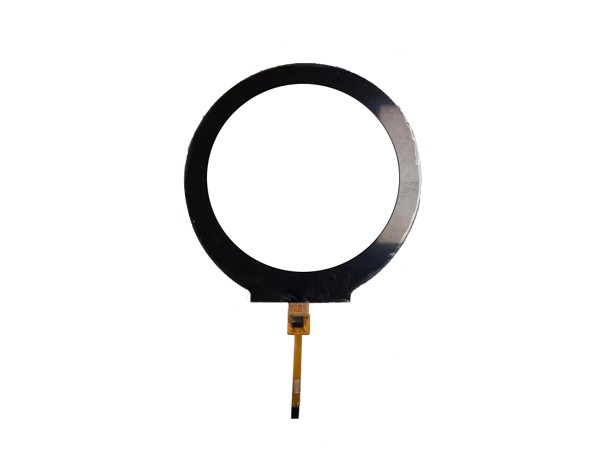

2.8inch round touch screen for 480*480 IPS circle type tft lcd
2.8inch round capacitive touch panel
CTP Model:RTPC28001
Touch Panel Size:2.8inch
Touch Panel Interface:I2C/IIC
Touch IC:CST
Cover Glass Colour:optional black or white
Oprating Temp.( ℃): -20~+70
Storage Temp.(℃): -30~+80
2.8inch touch panel screen for LCD module parameters
|
Item |
Specification |
Unit |
|
Touch panel size |
2.8 |
inch |
|
Touch Module Outline |
81.23(W) ×84.4(H) ×0.95(T) |
|
|
Viewing Area |
70.73(W)×70.73(H） |
mm |
|
Touch panel Type |
Project Capcitive touch screen |
|
|
Touch IC |
CST |
-- |
|
Touch point |
Multi-point/Single-point+gesture |
-- |
|
Touch structure |
Glass+OCA+film |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Cover lensColors |
Black/White |
-- |
|
Surface hardness |
≧6H |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
|
PIN NO. |
PIN DEF. |
FUNCTION DESC. |
|
1 |
GND |
Ground |
|
2 |
INT |
TP Interrupt PIN(3.3V) |
|
3 |
SDA |
TP I2C data (SDA) data input (MOSI)(3.3V) |
|
4 |
SCL |
TP I2C clock (SCLK)(3.3V) |
|
5 |
RESET |
TP RESET PIN(3.3V) |
|
6 |
VCC |
TP Input Power voltage(3.3V) |
|
7 |
GND |
Ground |
