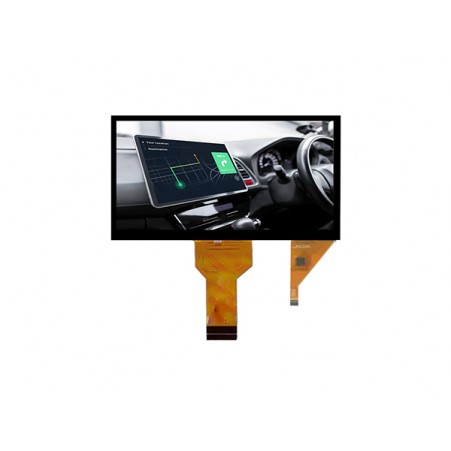

7.0 Inch 800x480 RGB TN LCD Module, 350 Nits for Smart Home and Industrial Tablets

A cost-effective 7.0 inch TN module for smart home panels and industrial tablets

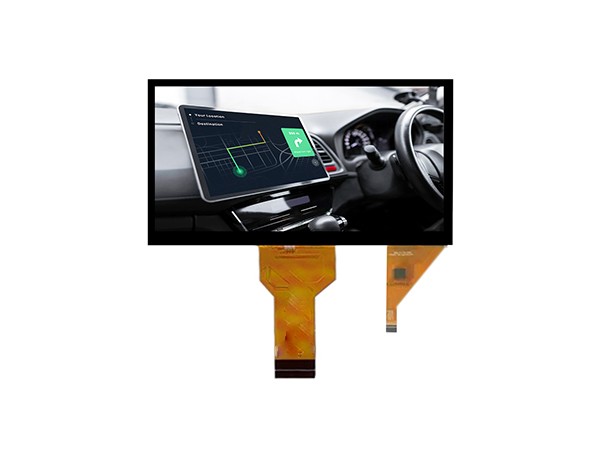

The R70002-800480RT-TP is a 7.0 inch LCD module with 800x480 resolution, RGB interface and TN technology, designed for smart home control panels, industrial tablets and cost-sensitive devices. With 350 nits brightness, normally white mode and optional capacitive touch, this TFT LCD Module offers a practical solution for applications where budget and simplicity matter more than ultra-wide viewing angles.

Why TN still makes sense for smart home panels

For wall-mounted smart home panels and basic industrial tablets, TN panels offer a lower-cost alternative to IPS while still delivering adequate performance for fixed-angle viewing.

• 800x480 resolution keeps controller and memory requirements low.
• TN panel structure reduces cost compared with IPS alternatives.
• 350 nits brightness is sufficient for indoor wall-mounted and desktop use.
• Optional capacitive touch with GT911 enables basic smart home interaction.

How this module fits smart home design

Smart home control panels are typically viewed head-on at a fixed angle, which plays to TN panel strengths. This module is designed for that use case with simple RGB connectivity and optional touch.

• RGB interface connects easily to low-cost SoCs and MCU-based systems.
• Normally white mode suits bright indoor environments with ambient light.
• 12 o'clock viewing direction matches typical wall-mounted panel orientation.

What to confirm before ordering

• Confirm your mainboard supports RGB output and match the pin definition.
• Check viewing direction requirement (12 o'clock) against your installation angle.
• Decide between bare LCM and a bonded solution with capacitive touch and cover lens.
• Share your target brightness and cover lens color for a tailored configuration.

Key specifications

Customization for smart home projects

• Touch panel: optional capacitive touch with GT911 for basic smart home control.
• Cover lens: custom thickness and black color for panel integration.
• Interface: RGB pin definition, FPC length and connector can match your mainboard.
• Testing: additional reliability tests available for always-on smart home use.

Typical applications

• Smart home control panels for lighting, HVAC and security.
• Industrial tablets and basic HMI terminals.
• Cost-sensitive embedded devices requiring RGB interface.
• Wall-mounted information displays with fixed viewing angle.

Case example: Smart home control panel

Buyer Requirement: A smart home company needed a 7.0 inch display for wall-mounted control panels with basic touch interaction and controlled cost.

Solution: RONDELI supplied the R70002-800480RT-TP with RGB interface, 350 nits brightness and optional capacitive touch.

Result: The panel delivered reliable smart home control at a competitive cost point, with adequate brightness for indoor wall mounting.

FAQ

Q1: Is TN suitable for smart home panels?

Yes. For wall-mounted panels viewed head-on, TN offers adequate performance at a lower cost than IPS.

Q2: Can this module work with low-cost SoCs?

Yes. The RGB interface and 800x480 resolution keep controller requirements low, suitable for MCU-based and entry-level SoC designs.

Q3: What makes this different from IPS versions?

This version uses TN technology, which reduces cost but limits viewing angle compared with IPS alternatives.

About RONDELI Display

RONDELI Display manufactures TFT LCD modules and touch display solutions for smart home, industrial tablet and cost-sensitive applications. The company supports OEM and ODM projects from selection to mass production.

Request a quote

Share your mainboard model, required touch configuration and estimated annual quantity to receive a tailored quotation and sample plan.
