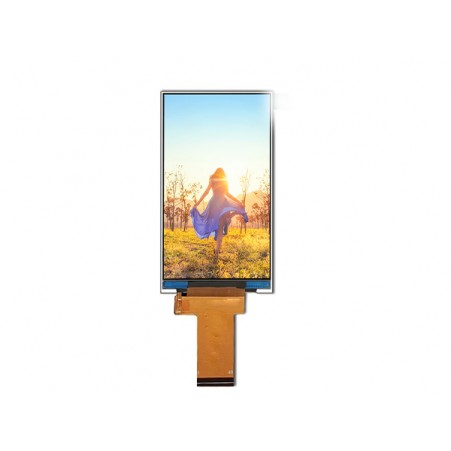

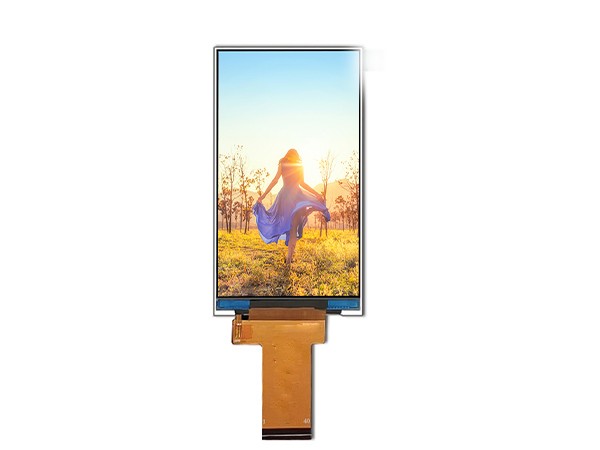

4.3 inch 480x800 300nits MIPI IPS Rectangle lcd display for smart home
4.3inchLCDnormallywhite 480xRGBx800resolution with mipi interfacelcd display module for Smart POS Device
Product advantages:Full View angle, Rectangle LCD Display
LCM Model:R43002-480800MZ
LCD Size:4.3inch
LCD Resolution:480x800
DriverIC:ST7701S
LCM Interface:MIPI
LCM OD:60.46 (W) x103.65 (H) x2.0 (T)
LCD AA:56.16 (W)x93.6 (H)
Display view angle:Full view
Display brightness:300nits
4.3inchRectangle LCD 480x800 tft lcddisplay parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
4.3 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x800 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
60.46 (W) x103.65 (H) x2.0 (T) |
mm |
|
LCD AA |
56.16 (W)x93.6 (H) |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
ST7701S |
- |
|
LCD Interface |
MIPI |
-- |
|
Luminance |
300(typ) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
/ |
|
|
Touch IC |
/ |
-- |
|
Touch point |
/ |
-- |
|
Touch structure |
/ |
-- |
|
Touch Interface |
/ |
-- |
|
Cover lens |
/ |
mm |
|
Surface hardness |
/ |
-- |
|
Cover lensColors |
/ |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
