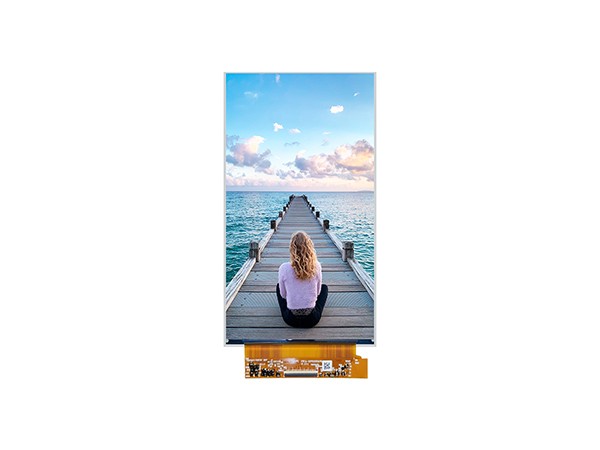

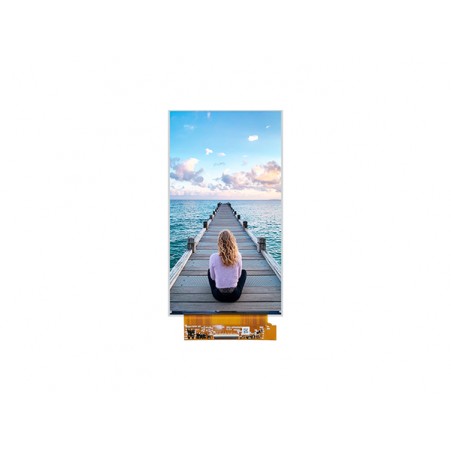

7 Inch TFT LCD Module 1200x1920, 1000 Nits, MIPI HDMI USB
The 7 Inch TFT LCD Module is a vertical-format 1200x1920 display with MIPI and HDMI interface, brightness up to 1000 nits and full-view IPS, designed for medical, industrial and smart terminal applications. RONDELI supports optional capacitive touch, USB driver board and custom cover lens to create a complete High Brightness LCD solution for different product requirements.
- 1200x1920 resolution on a 7 inch diagonal for detailed portrait UI and medical/industrial screens.
- Up to 1000 nits brightness and full-view IPS for clear visibility in bright indoor environments.
- MIPI panel with HDMI/USB driver board option for easy integration with PC, Android and embedded systems.
- Optional touch and cover lens to form a rugged High Brightness LCD module for demanding applications.
Share your target application, quantity and interface requirements to get a tailored quotation and sample options.
A high-resolution 7 inch TFT LCD module for medical, industrial and portrait display applications
The R70010-12001920MZ is a 7 inch TFT LCD module with 1200x1920 resolution, MIPI interface and HDMI/USB driver board support, designed for medical equipment, industrial terminals and portrait-oriented smart devices. With brightness up to 1000 nits, full-view IPS and optional capacitive touch, this display can be configured as a complete High Brightness LCD solution with custom interface and cover lens to match different product requirements.
Why this 7 inch TFT LCD module matters
In medical, industrial and kiosk applications, screens often need to work in bright indoor environments while displaying detailed text, curves and UI elements in portrait orientation. The 7 inch TFT LCD module combines high resolution, vertical format and high brightness in a compact outline.
- 1200x1920 resolution on a 7 inch diagonal provides sharp text and detailed medical/industrial interfaces.
- Portrait (vertical) orientation suits handheld terminals, wall-mounted panels and column-style displays.
- Up to 1000 nits brightness and full-view IPS support use in bright rooms and near-window positions.
- HDMI and USB options simplify integration with PC, Android boards and embedded systems.
How the MIPI panel and HDMI/USB driver work
The LCD panel uses a MIPI interface internally, while an external driver board converts HDMI or USB video signals to MIPI. This allows the module to be driven directly from common video sources without complex MCU programming.
- MIPI interface ensures high-speed data transmission within the module and to the driver board.
- HDMI input enables plug-and-play connection to PCs, media players and industrial controllers.
- USB interface option supports touch integration and simplified cabling for smart terminal designs.
What to check before buying a 7 inch High Brightness LCD
When selecting a 7 inch display for a project, the key parameters are resolution, orientation, brightness, interface and mechanical fit.
- Confirm the available installation space against the module outline (99.81 × 161.66 × 2.18 mm) and active area (94.5 × 151.2 mm).
- Decide whether you need a raw MIPI panel or a complete solution with HDMI/USB driver board.
- Choose brightness level (500 nits or 1000 nits) based on ambient light conditions.
- Check if you need a bare module or a solution with capacitive touch and cover lens already bonded.
Key specifications of the 7 inch TFT LCD module
| Item | Specification | Unit |
| LCD screen size | 7.0 | inch |
| Display Mode | Normally Black | – |
| Resolution | 1200 × (RGB) × 1920 | Pixel |
| Pixel arrangement | RGB Vertical Stripe | – |
| Viewing angle | Full View (IPS) | – |
| Module Outline Dimension | 99.81 (W) × 161.66 (H) × 2.18 (T) | mm |
| LCD AA | 94.5 (W) × 151.2 (H) | mm |
| Display Colors | 16.7M | colors |
| Driver IC | HX8279 | – |
| LCD Interface | MIPI (HDMI/USB via driver board) | – |
| Luminance | 1000 | cd/m² |
| Backlight Arrangement | White LED | – |
| Capacitive Touch Panel | Optional | – |
| Cover Lens Colors | White / Black | – |
| Weight (LCM / TP+LCM) | 0.04 | kg |
| Operating Temperature | -20 ~ +70 | °C |
| Storage Temperature | -30 ~ +80 | °C |
Customization options for 7 inch High Brightness LCD projects
RONDELI supports OEM and ODM customization on this 7 inch TFT LCD module to help customers integrate the display into their own medical, industrial and smart devices.
- Touch panel: optional capacitive touch to form a complete touch solution.
- Interface: MIPI pin definition, HDMI/USB driver board configuration and cable length can be tuned to match customer system.
- Cover lens: custom thickness, color (white/black) and logo printing for branded devices.
- Testing: additional reliability tests (temperature cycling, drop, long-term aging) can be arranged according to project requirements.
For deep customization (different outline, special optical bonding, unique brightness level or driver IC), RONDELI can evaluate feasibility based on target quantity and development timeline.
Typical applications of the 7 inch TFT LCD module
This high-resolution 7 inch display is suitable for portrait and landscape interfaces in medical, industrial and smart terminal applications.
- Medical equipment: diagnostic devices, patient monitoring modules, therapy and imaging equipment requiring detailed vertical screens.
- Industrial terminals: handheld testers, portable HMIs, inspection devices and control panels with high-resolution displays.
- Smart terminals and retail: kiosk displays, self-service terminals, advertising and information screens in portrait orientation.
- Other equipment: any application that requires a compact High Brightness LCD with HDMI or USB input and optional touch.
Case example: High Brightness LCD for a medical display terminal
A medical device manufacturer was developing a wall-mounted display terminal for patient information and workflow management.
Buyer Requirement: The buyer needed a 7 inch display with at least 1200x1920 resolution, high brightness for clinical environments, and HDMI input for easy integration.
Solution: RONDELI recommended the R70010-12001920MZ 7 inch TFT LCD module with 1200x1920 resolution, 1000 nits brightness and HDMI driver board. A custom capacitive touch panel and glass cover lens with logo printing were added to create a rugged, easy-to-clean interface.
Result: The final module provided clear text and graphics under hospital lighting, simple HDMI plug-and-play integration, and reliable performance in long-term clinical use.
Frequently asked questions about this 7 inch TFT LCD module
Q1: What is the resolution of this 7 inch TFT LCD module?
The display has a 1200 × (RGB) × 1920 resolution, which is suitable for detailed medical, industrial and kiosk interfaces in both portrait and landscape orientation.
Q2: Can this 7 inch LCD work directly with HDMI sources?
Yes. RONDELI can provide a complete solution with HDMI driver board, so the module can be driven directly from PCs, media players and industrial controllers via HDMI.
Q3: Is capacitive touch available for this 7 inch LCD module?
Yes, an optional capacitive touch panel can be added. Cover lens thickness, color and surface treatment can be customized to form a complete touch solution.
Q4: What brightness options are available for this High Brightness LCD?
This module supports 500 nits and 1000 nits brightness configurations. The 1000 nits version is recommended for bright indoor and near-window installations.
Q5: Can RONDELI support small MOQ for pilot projects?
Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.
About RONDELI Display
RONDELI Display is a manufacturer of TFT LCD modules, High Brightness LCD solutions and touch displays for medical, industrial and smart terminal applications. The company focuses on long-term supply, stable quality and engineering support for OEM and ODM projects. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.
Request a quote for the 7 inch TFT LCD module
For OEM inquiries on this 7 inch TFT LCD module, providing the following details helps speed up the quotation process:
- Target application (medical equipment, industrial terminal, kiosk, etc.)
- Required interface (MIPI only or HDMI/USB driver board) and brightness level (500/1000 nits)
- Touch configuration (with or without cover lens) and estimated annual quantity
Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2–3 weeks.
