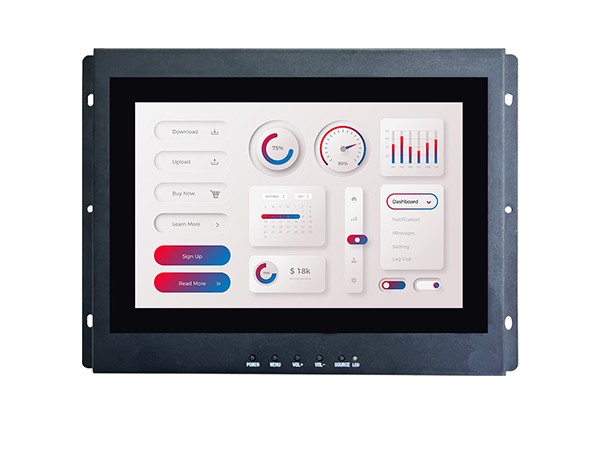

HDMI 10.1inch touch display 1280x800 capacitive touch
10.1inchLCD normally Black 1280xRGBx800 LVDS interfacelcd display module for industrial table
Product advantages: high brightness lcd display ,hdmi display
LCM Model:R101002-HDMI
LCD Size:10.1inch
LCD Resolution:1280x800
LCM Interface:LVDS
LCD AA:216.96x135.5
Display view angle:IPS
Display brightness:500nits
Touch Screen:Optional capacitive touch
10.1inch LCD module 1280x800 tft lcd panel parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
10.1 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
1280x(RGB)x800 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
LCM ModuleOutline |
228.6 (W) ×149.2 (H) ×3.0 (T) |
mm |
|
LCD AA |
216.96（W）×135.5（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
/ |
- |
|
LCDInterface |
LVDS |
-- |
|
Luminance |
500 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
With touch screen |
|
|
Touch IC |
ILI2511 |
-- |
|
Touch point |
/ |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
USB |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
