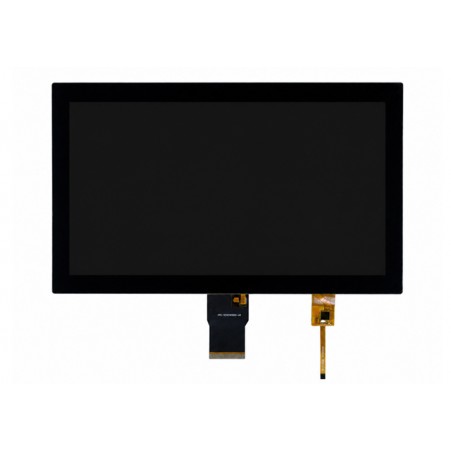

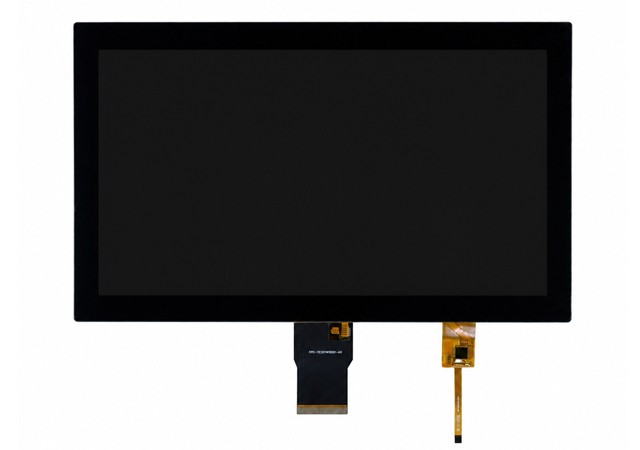

10.1 Inch Touch Display 1024x600 TFT LCD Touch Screen Module
10.1inchLCD NormallyBlack 1024xRGBx600RGB interface touch display module for industrial HMI, embedded system, kiosk and Raspberry Pi projects
Product advantages: Capacitive touch lcd display,
LCM Model:R101009-1024600RW-KC
LCD Size:10.1inch
LCD Resolution:1024x600
LCM Interface:RGB
LCD AA:222.72(W)×125.28(H)
Display view angle:IPS
Display brightness:500nits
Touch Screen:capacitive touch
10.1inch LCD touch module 1024x600 tft lcd panel parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
10.1 |
inch |
|
Display Mode |
NormallyBlack |
-- |
|
Resolution |
1024x(RGB)x600 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full View |
- |
|
CTP+LCM ModuleOutline |
247.0(W) ×153.0(H) ×7.6(T) |
mm |
|
LCM Module Outline |
235.0(W) ×143.0(H) ×5.1(T) |
mm |
|
LCD AA |
222.72(W)×125.28(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
/ |
- |
|
LCDInterface |
RGB |
-- |
|
Luminance |
500 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option |
|
|
Touch IC |
GT9271 |
-- |
|
Touch point |
5point |
-- |
|
Touch structure |
G+G |
-- |
|
Touch Interface |
IIC(I2C) |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
