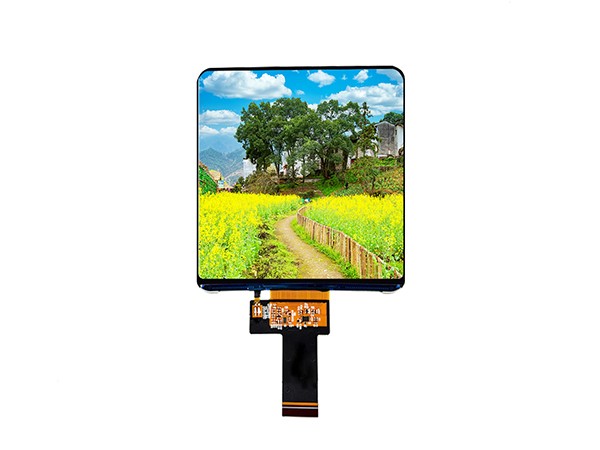

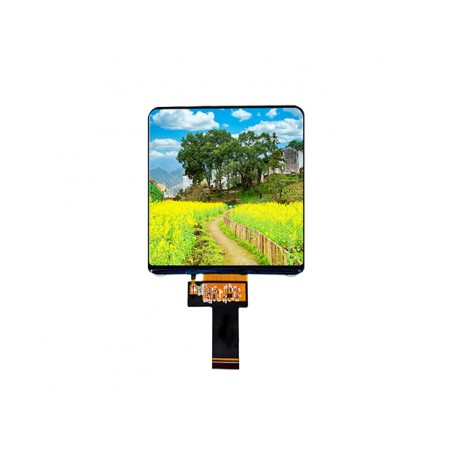

5.0inch Square LCD 720*720 MIPI display for IoT Devices & Consumer Electronics Display
5.0inch square LCD normally black720xRGBx720 resolution with mipi interface circular lcd display module for LOT/medical instument
Product advantages: high definition square lcd display with built in touch function
LCM Model:R50007-720720MZ
LCD Size:5.0inch
LCD Resolution:720x720
DriverIC:JD9365
LCM Interface:MIPI
LCM OD:93.67(W)x96.87(H)x2.2(T)
LCD AA:91.37(W)x91.37(H）
Viewing Aangle:Full View
Display brightness:350nits
Touch Screen: option capacitive touch function
5.0inch square LCD display 720x720 tft lcd module parameters:
|
Item |
Specification |
Unit |
|
LCDScreenSize |
5.0inch |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
720x(RGB)x720 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
/ |
|
|
LCM ModuleOutline |
93.67(W) × 96.87(H) × 2. 15 (T) |
mm |
|
LCD AA |
91.37（W）×91.37（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
JD9365 |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
350 |
nits |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Capacitive touch |
|
|
Touch IC |
|
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
/ |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lens Colors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +80℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +85℃ |
Deg.c |
