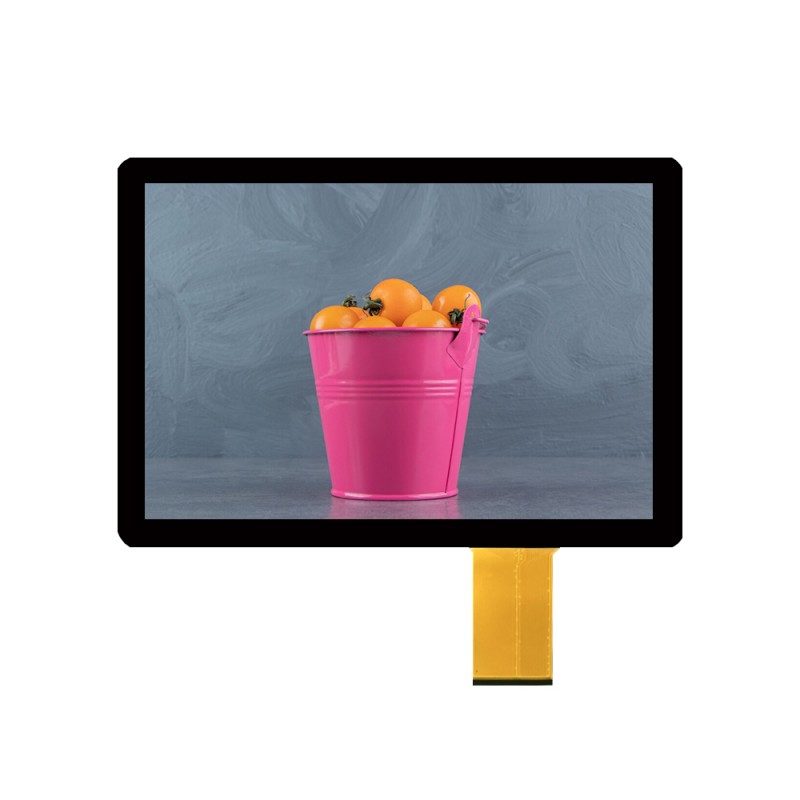

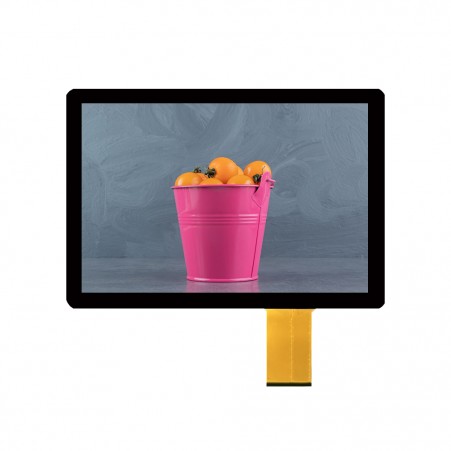

10.1 Inch LCD Touch Display 1920x1200, 1000 Nits, LVDS IPS TFT LCD Module

A high-brightness 10.1 inch LCD touch display for industrial control, HMI and automation systems

The R101007 is a 10.1 inch LCD touch display with 1920x1200 resolution, LVDS interface and IPS technology, designed for industrial control panels, HMI stations and automation equipment. As a rugged TFT LCD Module with typical 1000 nits brightness, 10-point capacitive touch and wide temperature operation, it serves as a High Brightness LCD solution for demanding environments with strong ambient light and electrical noise.

Why this 10.1 inch LCD touch display matters

In industrial control, HMI and automation applications, displays must remain readable under bright indoor lighting while maintaining stable operation over long hours. The 10.1 inch LCD touch display combines Full HD+ resolution, LVDS reliability and high luminance in a compact 10.1 inch form factor suitable for control cabinets and machine-mounted panels.

• 1920x1200 resolution on a 10.1 inch diagonal provides clear multi-window and data-rich interfaces.
• Typical 1000 nits brightness ensures visibility in bright workshops, control rooms and near-window positions.
• IPS full-view technology guarantees consistent color and contrast from multiple viewing angles.
• LVDS interface offers noise-resistant transmission suitable for electrically noisy industrial setups.

How the LVDS interface and touch system work

LVDS (Low Voltage Differential Signaling) is a stable, noise-resistant interface widely used in industrial and transportation displays. It allows reliable transmission over longer distances inside a cabinet or vehicle, compared with simple MCU/SPI interfaces. The capacitive touch layer uses a USB interface to communicate with the host controller, enabling smooth multi-touch interaction on top of the TFT LCD Module.

• LVDS interface reduces signal interference in electrically noisy environments such as control cabinets and production lines.
• 10-point PCAP touch with USB interface supports gestures and multi-finger operation on HMI and SCADA screens.
• Glass+glass touch structure and ≥6H surface hardness improve durability in frequent-touch industrial applications.

What to check before buying a 10.1 inch TFT LCD Module

When selecting a 10.1 inch display for a project, the key parameters are resolution, brightness, interface, mechanical fit and touch requirements.

• Confirm the available installation space against the LCM outline (229.46 × 149.1 × 4.65 mm) and active area (216.81 × 135.5 mm).
• Match the LVDS interface and pin definition with your mainboard; custom cable length and connector can be arranged.
• Decide if you need a bare TFT LCD Module or a complete touch solution with cover lens and mounting design.
• Check the operating temperature range (-20°C ~ +70°C) against your target application environment.

Key specifications of the 10.1 inch LCD touch display

Customization options for 10.1 inch TFT LCD Module projects

RONDELI supports OEM and ODM customization on this 10.1 inch LCD touch display to help customers integrate the screen into their own industrial control, HMI and automation equipment.

• Touch panel: PCAP with USB interface and 10-point multi-touch; cover lens thickness and shape can be adjusted.
• Interface: LVDS pin definition, cable length and connector type can be tuned to match customer mainboard.
• Branding: custom logo on cover lens or flexible cable for private-label industrial devices.
• Testing: additional reliability tests (temperature cycling, vibration, long-term aging) can be arranged according to project requirements.

For deep customization (different outline, special optical bonding, unique brightness level or driver IC), RONDELI can evaluate feasibility based on target quantity and development timeline.

Typical applications of the 10.1 inch LCD touch display

This high-brightness 10.1 inch TFT LCD Module is suitable for data-rich interfaces in industrial, automation and smart equipment.

• Industrial control: HMI panels, control consoles, SCADA stations and machine monitoring systems.
• Automation equipment: robotics controllers, production line terminals and test equipment with touch operation.
• Smart equipment and kiosks: self-service terminals, information kiosks and smart panels requiring a High Brightness LCD.
• Other equipment: any application that needs a reliable 10.1 inch touch display with LVDS interface and high visibility.

Case example: High Brightness LCD for an HMI control panel

An automation equipment manufacturer was upgrading its HMI control panel with a higher-resolution, brighter display.

Buyer Requirement: The buyer needed a 10.1 inch touch display with at least 1920x1200 resolution, high brightness for bright workshops, and stable operation from -20°C to +70°C.

Solution: RONDELI recommended the R101007 10.1 inch LCD touch display with 1920x1200 resolution, LVDS interface and 1000 nits typical brightness. A custom cover lens with logo printing was added to create a rugged High Brightness LCD solution for the HMI panel.

Result: The final module provided clear multi-window operation, responsive touch control in noisy electrical environments, and reliable long-term performance on the production line.

Frequently asked questions about this 10.1 inch LCD touch display

Q1: What is the resolution of this 10.1 inch LCD touch display?

The display has a 1920 × (RGB) × 1200 resolution, which is suitable for data-rich HMI, SCADA and multi-window interfaces on a 10.1 inch diagonal.

Q2: Can this TFT LCD Module work with my existing LVDS board?

In most cases, yes. RONDELI can adjust LVDS pin definition, cable length and connector type to match your mainboard. Please share your board requirements for confirmation.

Q3: How many touch points does this 10.1 inch touch display support?

The PCAP touch panel supports 10-point multi-touch with a USB interface, suitable for gestures and multi-finger operation on HMI and control screens.

Q4: Is this display suitable as a High Brightness LCD for bright workshops?

With typical 1000 nits brightness and IPS full-view technology, this module is suitable as a High Brightness LCD for bright indoor industrial environments and near-window installations.

Q5: Can RONDELI support small MOQ for pilot projects?

Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.

About RONDELI Display

RONDELI Display is a manufacturer of TFT LCD Module products, High Brightness LCD solutions and industrial touch displays for control, automation and smart equipment applications. The company focuses on long-term supply, stable quality and engineering support for OEM and ODM projects. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.

Request a quote for the 10.1 inch LCD touch display

For OEM inquiries on this 10.1 inch LCD touch display, providing the following details helps speed up the quotation process:

• Target application (industrial control, HMI, automation equipment, kiosk, etc.)
• Required brightness and touch configuration (with or without custom cover lens)
• Interface and connector requirements (LVDS pin definition, cable length)
• Estimated annual quantity and any custom branding or packaging needs

Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2–3 weeks.
