10.1inch USB Capacitive touch panel for PC table

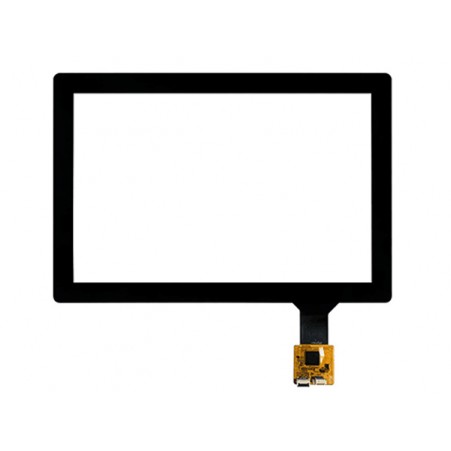

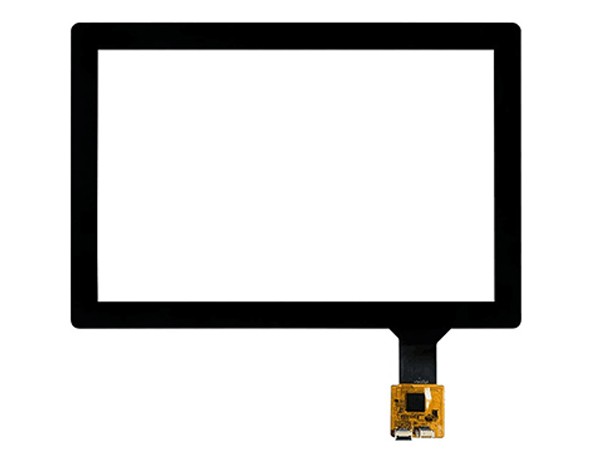

10.1 inch Projected Capacitive Touch Screen
CTP model: RTPB10107A0
Touch Panel Size: 10.1inch
Touch Panel Interface: I2C/USB
Touch IC: ILITEK2511
TouchGlass Colour: optional black or white
Oprating Temp.( ℃): -20~+70
Storage Temp.(℃): -30~+80
10.1inch touch panel screen for LCD module parameters
|
Item |
Specification |
Unit |
|
Touch panel size |
10.1 |
inch |
|
Touch Module Outline |
240.35(W) ×157.87(H) ×1.45(T) |
|
|
Viewing Area |
217.96(W)×135.7(H） |
mm |
|
Touch panel Type |
Project Capcitive touch screen |
|
|
Touch IC |
ILI2511 |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
Glass+OCA+Glass |
-- |
|
Touch Interface |
USB/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Cover lensColors |
Black/White |
-- |
|
Surface hardness |
≧6H |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
