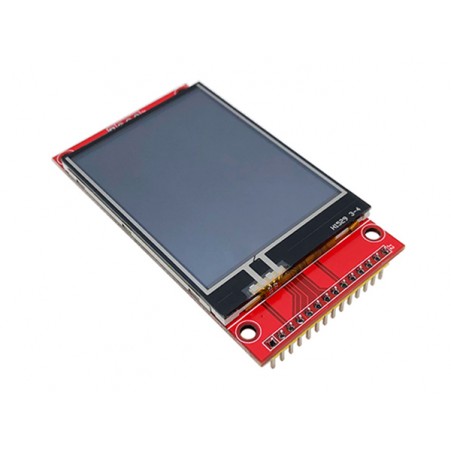

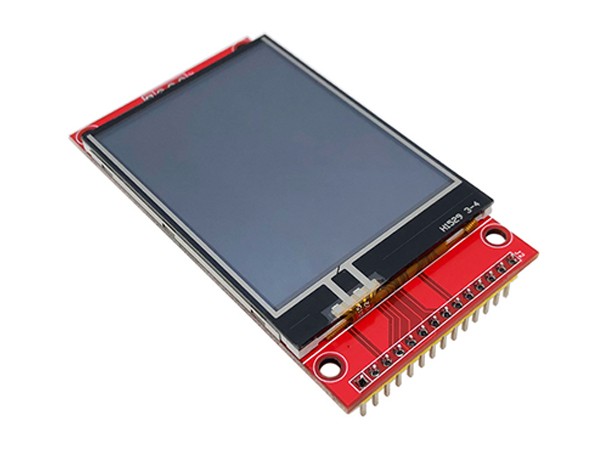

2.4 Inch LCD Display 240x320, SPI Interface, ILI9341 UART

A compact 2.4 inch LCD display for embedded, IoT and industrial control interfaces

This 2.4 inch LCD display is a 240x320 TFT module with 4-wire SPI interface, ILI9341 driver and UART support, designed for embedded systems, IoT devices and compact industrial control panels. With 3.3V/5V operation, wide temperature range and optional capacitive touch, this display can be configured as a complete touch panel display with custom cover lens and interface to match different product requirements.

Why this 2.4 inch LCD display matters

In embedded and IoT devices, screens must be small, low-power and easy to integrate while still providing clear text and simple graphics. The 2.4 inch LCD display combines moderate resolution, common driver IC and simple SPI interface in a compact outline.

• 240x320 resolution on a 2.4 inch diagonal provides clear menus, status lines and basic UI elements.
• ILI9341 driver and 4-wire SPI interface are widely supported by MCU platforms and open-source libraries.
• 3.3V/5V operation simplifies power design in battery-powered and low-cost embedded projects.
• Optional capacitive touch allows the module to be used as a compact touch panel display.

How the SPI interface and ILI9341 driver work

The ILI9341 is a popular single-chip driver for 240x320 TFT panels. It supports 4-wire SPI, 8-bit MCU and other interfaces, making it suitable for a wide range of microcontroller-based designs.

• 4-wire SPI mode reduces signal lines while maintaining good update performance for text and simple graphics.
• UART support enables serial communication with host MCUs that prefer command-based control.
• Integrated driver IC reduces external components and simplifies PCB layout for compact devices.

What to check before buying a 2.4 inch LCD module

When selecting a 2.4 inch display for a project, the key parameters are resolution, interface, driver IC, mechanical fit and touch requirements.

• Confirm the available installation space against the module outline (77.18 × 42.72 mm) and display area (36.72 × 48.96 mm).
• Match the 4-wire SPI / UART interface and voltage (3.3V/5V) with your mainboard.
• Decide if you need a bare module or a solution with capacitive touch panel and cover lens already bonded.
• Check the operating temperature range (-20°C ~ +70°C) against your target application environment.

Key specifications of the 2.4 inch LCD display

Customization options for 2.4 inch LCD projects

RONDELI supports OEM and ODM customization on this 2.4 inch LCD display to help customers integrate the screen into their own embedded, IoT and industrial devices.

• Touch panel: optional capacitive touch to form a compact touch panel display.
• Interface: SPI pin definition, FPC length and connector type can be tuned to match customer mainboard.
• Cover lens: custom thickness, shape and logo printing for branded devices.
• Testing: additional reliability tests (temperature cycling, drop, ESD) can be arranged according to project requirements.

For deep customization (different outline, special optical bonding, unique driver IC or brightness level), RONDELI can evaluate feasibility based on target quantity and development timeline.

Typical applications of the 2.4 inch LCD display

This compact 2.4 inch TFT LCD module is suitable for simple user interfaces in embedded, consumer and industrial devices.

• Embedded and IoT: smart sensors, gateway devices, data loggers and communication modules with small screens.
• Industrial control: handheld testers, parameter setting panels, simple HMI modules and instrument displays.
• Consumer electronics: portable gadgets, promotional devices, educational kits and DIY projects.
• Other equipment: compact interfaces where a low-cost, easy-to-drive touch panel display is required.

Case example: 2.4 inch touch panel display for an IoT sensor

An IoT solution provider was developing a wall-mounted sensor node that required a small local display.

Buyer Requirement: The buyer needed a 2.4 inch display with at least 240x320 resolution, simple SPI interface and low power consumption for continuous operation.

Solution: RONDELI recommended the 2.4 inch LCD display with 240x320 resolution, 4-wire SPI interface and ILI9341 driver. A custom capacitive touch panel and cover lens with logo were added to create a compact touch panel display.

Result: The final module provided clear status and configuration menus, easy integration with the customer's MCU, and reliable performance in long-term indoor operation.

Frequently asked questions about this 2.4 inch LCD display

Q1: What is the resolution of this 2.4 inch LCD display?

The display has a 240 × 320 resolution, which is suitable for clear text, icons and simple graphics on embedded and industrial control screens.

Q2: Can this 2.4 inch LCD work with my existing SPI MCU?

In most cases, yes. The 4-wire SPI interface and ILI9341 driver are widely supported by common microcontrollers. Please share your MCU and voltage requirements for confirmation.

Q3: Is capacitive touch available for this 2.4 inch LCD module?

Yes, an optional capacitive touch panel can be added to form a compact touch panel display. Cover lens thickness, shape and surface treatment can be customized.

Q4: What is the typical lead time for samples and mass production?

Sample lead time is usually around 2–3 weeks, depending on configuration. Mass production lead time is negotiated based on order quantity and customization level.

Q5: Can RONDELI support small MOQ for pilot projects?

Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.

About RONDELI Display

RONDELI Display is a manufacturer of TFT LCD modules, touch panel displays and embedded screen solutions for IoT, industrial and consumer applications. The company focuses on long-term supply, stable quality and engineering support for OEM and ODM projects. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.

Request a quote for the 2.4 inch LCD display

For OEM inquiries on this 2.4 inch LCD display, providing the following details helps speed up the quotation process:

• Target application (IoT device, industrial control, consumer electronics, etc.)
• Required interface (SPI / UART) and touch configuration (with or without cover lens)
• Estimated annual quantity and any custom branding or packaging needs

Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2–3 weeks.
