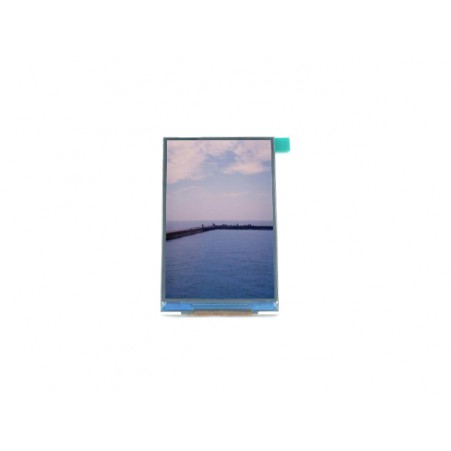

4.0inch 480*800 350nits MIPI IPS LCD module for selfscreen
4.0inch normally black 480xRGBx800 resolution mipi interface lcd display module for Personal Digital Assistant
Product advantages:Full View angle, high brightnesslcd display
LCM Model:R40045-480800MZ
LCD Size:4.0inch
LCD Resolution:480x800
DriverIC:ST7701S
LCM Interface:MIPI
LCM OD:55.44x96.15x1.8
LCD AA:51.84x86.4
Display view angle:Full view
Display brightness: 350nits
Touch Screen: with or without touch
4.0inch tft LCD 480x800 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
4.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x800 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Normally Black |
- |
|
LCM Module outline |
55.44（W）*96.15（H）* 1.8(T)
|
mm |
|
LCD AA |
51.84（W)*86.40（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST7701S |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
350 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
0.03 |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
4.0 inch tft lcd module dimension MIPI interface：
