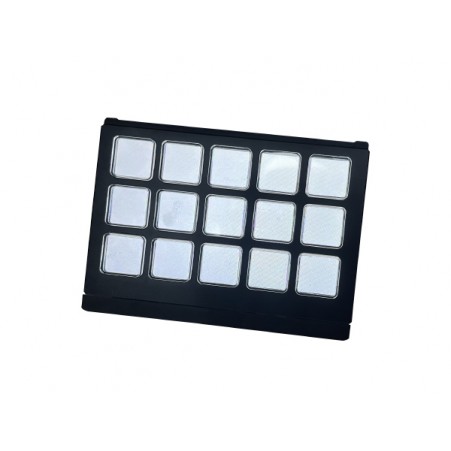

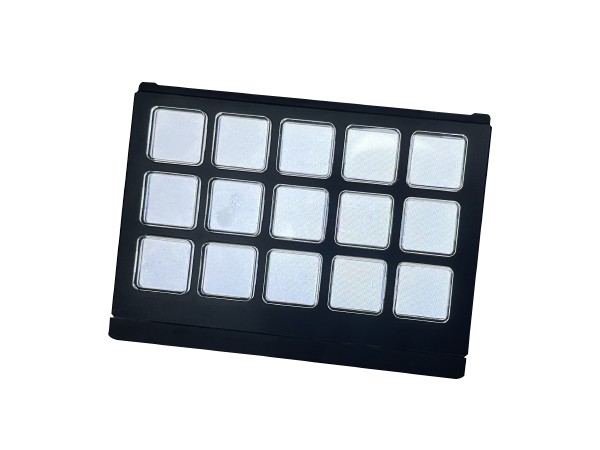

4.3 inch RGB 480*272 800nits IPS tft lcd display
4.3inch LCD normally black 480xRGBx272 resolution with RGB interfacelcd display module for Stream Deck Elgato
Product advantages:Full View angle, high brightnesslcd module
LCM Model: R43016-480272RZ
LCD Size:4.3inch
LCD Resolution:480x272
DriverIC:ST7283
LCM Interface:RGB
Display view angle: IPS
Display brightness:300/500/800nits
Touch Screen: with or without touch
4.3inch LCD 480x272 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
4.3 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x272 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
FULL VIEW(IPS) |
- |
|
Module outline dimension |
105.46 (W) ×67.16 (H) ×2.75 (T) |
mm |
|
LCD AA |
95.04（W）×53.86（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST7283-G4-1-E |
- |
|
LCDInterface |
RGB |
-- |
|
Luminance |
300、500、800 |
cd/㎡ |
|
Backlight Arrangement |
White LED（5S2P） |
-- |
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
- |
-- |
|
Cover lensColors |
- |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
