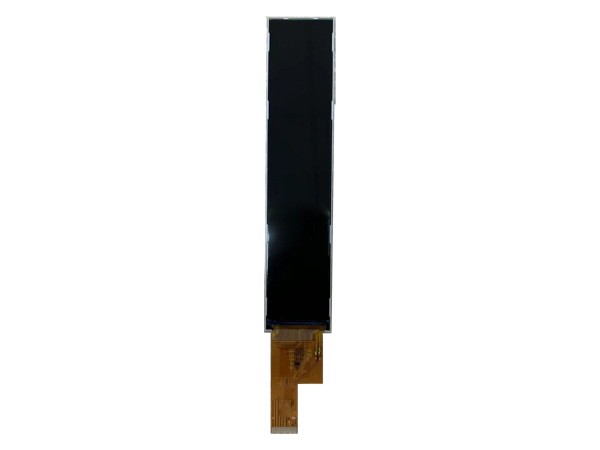

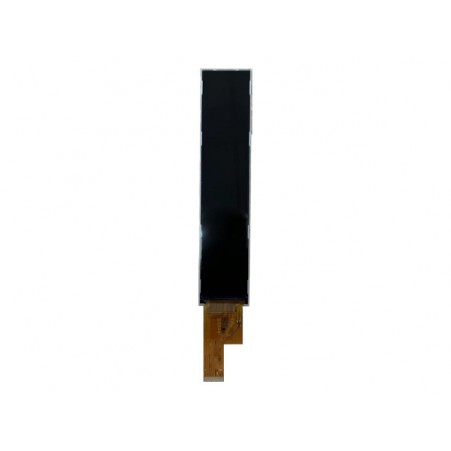

6.9inch 280*1424 Bar type LCD display with MIPI/RGB for audio equipment
6.9inch bar type lcd display full view280xRGBx1424 MIPI or RGB interface for audio equipment
Product advantages:high brightness bar display
LCM Model:R69001-2801424MZ
LCD Size:6.9inch
LCD AA:33.6x170.88
LCD Resolution:280x1424
LCD Interface:MIPI
Display view angle:IPS
DisplayLuminance:900nits
Touch Screen:optional capacitive touch panel
6.9inch LCD module 280x1424 bar tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
6.9 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
280x(RGB)x1424 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
38.2(W) ×181.47 (H) ×3.5 (T) |
mm |
|
LCD AA |
33.6（W）×170.88（H） |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
JD9365DA-H3 |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
900(typ) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Without PCAP |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
