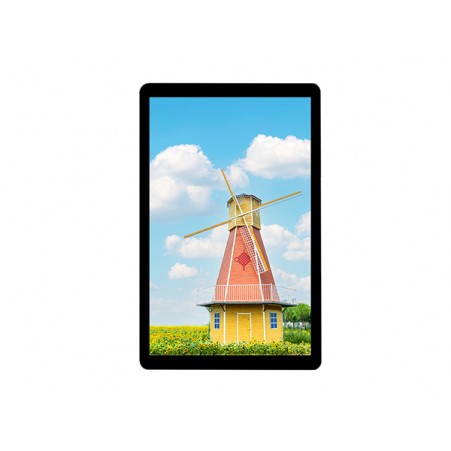

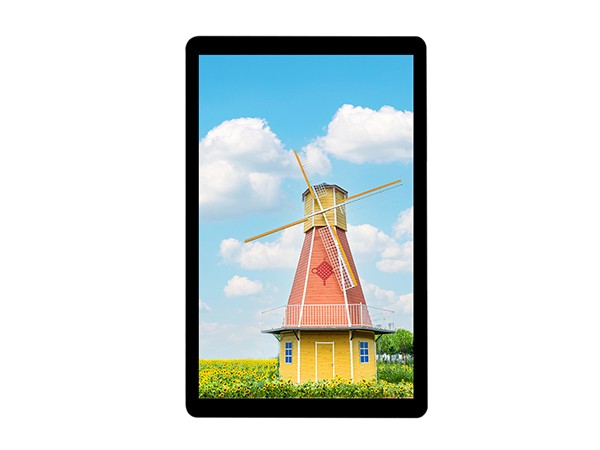

10.1inch 800x1280 LCD touch display 40pin MIPI interface for tablet
10.1inch liquid crystal LCD display normally Black 800xRGBx1280
MIPI interface 40PIN with capacitive touch panel for tablet
Product advantages:multi-point touch ,MIPI lcd display module
LCM Model:R101008-8001280MZ-QC
LCD Size:10.1inch
LCDPixels:800x1280
LCM Interface:MIPI
Display view angle:IPS
DisplayLuminance:500nits(LCM)
Touch Screen: capacitive touch
10.1inch touch display 800x1280 MIPI interface lcd touch display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
10.1 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
800x(RGB)x1280 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-Module OD |
135.36(W) ×243.85(H) ×4.35(T) |
|
|
LCM Module OD |
143.05 (W) ×228.55 (H) ×2.60 (T) |
mm |
|
LCD AA |
135.36（W）×216.58（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
JD9365DA-H3 |
- |
|
LCD Interface |
MIPI |
-- |
|
Luminance |
400 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Capacitive touch |
|
|
Touch IC |
GT9271 |
-- |
|
Touch point |
Multi-point(5point) |
-- |
|
Touch structure |
GFF |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
