5.5 Inch LCD Display 720x1280, 500 Nits, MIPI IPS TFT LCD Module

A compact 5.5 inch LCD display for navigation, handheld and smart device interfaces

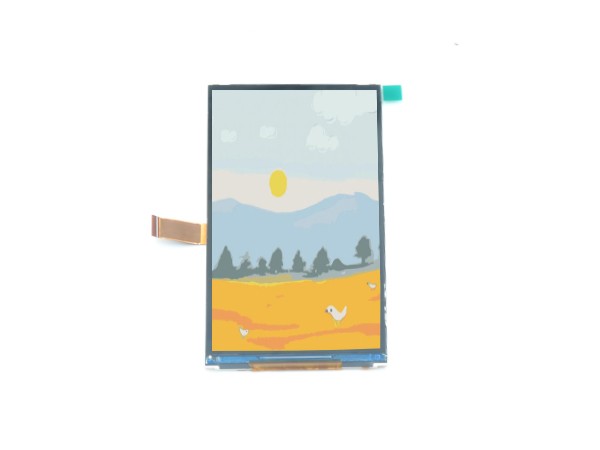

The R55002-7201280MZ is a 5.5 inch LCD display with 720x1280 resolution, MIPI interface and IPS technology, designed for navigation systems, handheld devices and smart terminals. As a high-performance TFT LCD Module with 500 nits brightness and normally black mode, it can be configured as a High Brightness LCD solution with optional capacitive touch and custom cover lens to match different product requirements.

Why this 5.5 inch LCD display matters

In navigation, handheld and smart devices, screens must be compact, power-efficient and able to deliver clear visuals in various lighting conditions. The 5.5 inch LCD display combines HD resolution, moderate size and MIPI interface in a slim outline suitable for battery-powered and space-constrained products.

• 720x1280 HD resolution on a 5.5 inch diagonal provides clear maps, menus and media playback.
• IPS full-view technology ensures consistent color and contrast from multiple viewing angles.
• 500 nits brightness and normally black mode support use as a High Brightness LCD in bright indoor areas.
• MIPI interface simplifies integration with mobile-class SoCs and application processors.

How the MIPI interface and IPS panel work

MIPI (Mobile Industry Processor Interface) is a high-speed serial interface widely used in mobile and portable displays. It allows the main processor to drive the screen with reduced pin count and power consumption, which is critical for handheld and battery-powered devices.

• MIPI DSI interface enables HD graphics with efficient bandwidth usage and low EMI.
• IPS panel structure provides wide viewing angles and stable color performance across the screen.
• Normally black mode improves perceived contrast and reduces light leakage in dark scenes.

What to check before buying a 5.5 inch TFT LCD Module

When selecting a 5.5 inch display for a project, the key parameters are resolution, interface, brightness, mechanical fit and touch requirements.

• Confirm the available installation space against the module outline (71 × 130.2 × 1.7 mm) and active area (68.04 × 120.96 mm).
• Match the MIPI interface and pin definition with your mainboard; custom FPC length and connector can be arranged.
• Decide if you need a bare TFT LCD Module or a solution with capacitive touch and cover lens already bonded.
• Check the operating temperature range (-20°C ~ +70°C) against your target application environment.

Key specifications of the 5.5 inch LCD display

Customization options for 5.5 inch TFT LCD Module projects

RONDELI supports OEM and ODM customization on this 5.5 inch LCD display to help customers integrate the display into their own navigation, handheld and smart devices.

• Touch panel: optional capacitive touch with IIC interface and 5-finger multi-point support.
• Cover lens: custom thickness, color (white/black) and logo printing for branded devices.
• Interface: MIPI pin definition, FPC length and connector type can be tuned to match customer mainboard.
• Testing: additional reliability tests (temperature cycling, drop, ESD) can be arranged according to project requirements.

For deep customization (different outline, special optical bonding, unique brightness level or driver IC), RONDELI can evaluate feasibility based on target quantity and development timeline.

Typical applications of the 5.5 inch LCD display

This compact 5.5 inch TFT LCD Module is suitable for portable interfaces in automotive, consumer and industrial devices.

• Automotive and navigation: navigation systems, GPS displays, fleet management and in-vehicle information terminals.
• Handheld and smart devices: portable smart terminals, IoT gateways and handheld gadgets requiring an HD display.
• Industrial and medical: handheld testers, portable instruments and control panels where a High Brightness LCD is preferred.
• Consumer electronics: educational devices, promotional gadgets and other products needing vivid visuals on a 5.5 inch screen.

Case example: High Brightness LCD for a navigation terminal

An automotive electronics company was developing a new navigation terminal for fleet management.

Buyer Requirement: The buyer needed a 5.5 inch display with at least 720x1280 resolution, good color performance and stable operation in bright vehicle cabins.

Solution: RONDELI recommended the R55002-7201280MZ 5.5 inch LCD display with 720x1280 resolution, MIPI interface and 500 nits brightness. A custom capacitive touch panel and glass cover lens with logo printing were added to create a complete High Brightness LCD solution.

Result: The final module provided clear maps and route information under strong ambient light, responsive touch control and reliable performance in long-term vehicle use.

Frequently asked questions about this 5.5 inch LCD display

Q1: What is the resolution of this 5.5 inch LCD display?

The display has a 720 × (RGB) × 1280 resolution, which is suitable for clear maps, menus and media playback on a 5.5 inch diagonal.

Q2: Can this TFT LCD Module work with my existing MIPI board?

In most cases, yes. RONDELI can adjust MIPI pin definition, FPC length and connector type to match your mainboard. Please share your board requirements for confirmation.

Q3: Is capacitive touch available for this 5.5 inch LCD module?

Yes, an optional capacitive touch panel with IIC interface and 5-finger multi-point support is available. Cover lens thickness, hardness and surface treatment can be customized.

Q4: Is this display suitable as a High Brightness LCD for bright environments?

With 500 nits brightness and normally black mode, this module can serve as a High Brightness LCD in bright indoor environments and vehicle cabins with strong ambient light.

Q5: Can RONDELI support small MOQ for pilot projects?

Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.

About RONDELI Display

RONDELI Display is a manufacturer of TFT LCD Module products, High Brightness LCD solutions and touch displays for automotive, handheld and smart device applications. The company focuses on long-term supply, stable quality and engineering support for OEM and ODM projects. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.

Request a quote for the 5.5 inch LCD display

For OEM inquiries on this 5.5 inch LCD display, providing the following details helps speed up the quotation process:

• Target application (navigation system, handheld device, smart terminal, etc.)
• Required brightness and touch configuration (with or without cover lens)
• Interface and connector requirements (MIPI pin definition, FPC length)
• Estimated annual quantity and any custom branding or packaging needs

Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2–3 weeks.
