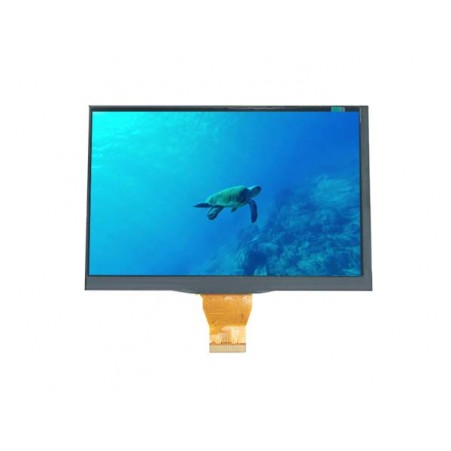

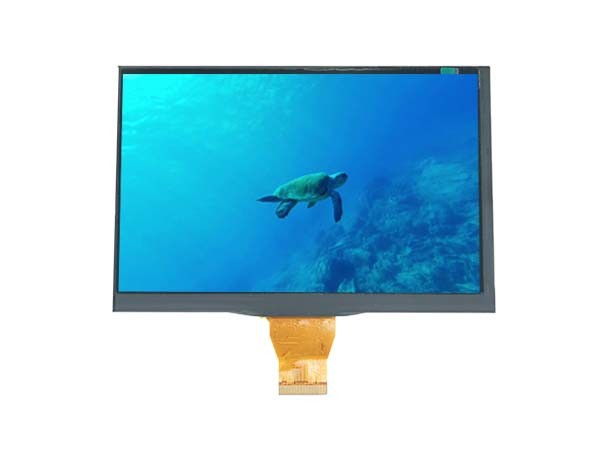

7.0 Inch LCD Module 1024x600, 500 Nits, RGB IPS TFT LCD Display

A compact 7.0 inch LCD module for Smart POS, retail and industrial display applications

The R70009-1024600RZ is a 7.0 inch LCD module with 1024x600 resolution, RGB interface and IPS technology, designed for Smart POS devices, retail terminals and industrial equipment. As a reliable TFT LCD Module with 500 nits brightness and normally black mode, it can be configured as a High Brightness LCD solution with optional capacitive touch and custom cover lens to match different product requirements.

Why this 7.0 inch LCD module matters

In POS, retail and light industrial applications, screens must be compact, power-efficient and able to deliver clear visuals in various lighting conditions. The 7.0 inch LCD module combines WVGA resolution, RGB interface and IPS viewing performance in a slim outline suitable for embedded and standalone terminals.

• 1024x600 resolution on a 7.0 inch diagonal provides clear POS UI, menus and data screens.
• IPS full-view technology ensures consistent color and contrast from multiple viewing angles.
• 500 nits brightness and normally black mode support use as a High Brightness LCD in bright indoor areas.
• RGB interface simplifies integration with common display controllers and embedded systems.

How the RGB interface and IPS panel work

RGB interface is a parallel display interface widely used in embedded and mid-size displays. It allows the host controller to drive the screen with straightforward timing and good color performance, which is suitable for POS, retail and industrial devices.

• RGB parallel interface enables direct connection to display controllers and SoCs with RGB output.
• IPS panel structure provides wide viewing angles and stable color performance across the screen.
• Normally black mode improves perceived contrast and reduces light leakage in dark scenes.

What to check before buying a 7.0 inch TFT LCD Module

When selecting a 7.0 inch display for a project, the key parameters are resolution, interface, brightness, mechanical fit and touch requirements.

• Confirm the available installation space against the module outline (163.7 × 96.9 × 2.6 mm) and active area (154.21 × 85.92 mm).
• Match the RGB interface and pin definition with your mainboard; custom FPC length and connector can be arranged.
• Decide if you need a bare TFT LCD Module or a solution with capacitive touch and cover lens already bonded.
• Check the operating temperature range (-20°C ~ +70°C) against your target application environment.

Key specifications of the 7.0 inch LCD module

Customization options for 7.0 inch TFT LCD Module projects

RONDELI supports OEM and ODM customization on this 7.0 inch LCD module to help customers integrate the display into their own Smart POS, retail and industrial devices.

• Touch panel: optional capacitive touch with IIC interface and 5-finger multi-point support.
• Cover lens: custom thickness, color (white/black) and logo printing for branded devices.
• Interface: RGB pin definition, FPC length and connector type can be tuned to match customer mainboard.
• Testing: additional reliability tests (temperature cycling, drop, ESD) can be arranged according to project requirements.

For deep customization (different outline, special optical bonding, unique brightness level or driver IC), RONDELI can evaluate feasibility based on target quantity and development timeline.

Typical applications of the 7.0 inch LCD module

This compact 7.0 inch TFT LCD Module is suitable for user interfaces in retail, POS and light industrial devices.

• Smart POS and retail: POS terminals, self-checkout kiosks, price checkers and retail information displays.
• Industrial and automation: HMI panels, parameter setting screens and light industrial control terminals.
• Consumer and smart devices: smart home panels, portable terminals and IoT devices requiring a compact display.
• Other equipment: any application that requires a reliable High Brightness LCD with RGB interface and optional touch.

Case example: High Brightness LCD for a Smart POS terminal

A POS solution provider was developing a new Smart POS terminal for retail and hospitality scenarios.

Buyer Requirement: The buyer needed a 7.0 inch display with at least 1024x600 resolution, good color performance and stable operation in bright indoor environments.

Solution: RONDELI recommended the R70009-1024600RZ 7.0 inch LCD module with 1024x600 resolution, RGB interface and 500 nits brightness. A custom capacitive touch panel and glass cover lens with logo printing were added to create a complete High Brightness LCD solution for the POS terminal.

Result: The final module provided clear POS UI and payment screens under strong ambient light, responsive touch control and reliable performance in long-term daily operation.

Frequently asked questions about this 7.0 inch LCD module

Q1: What is the resolution of this 7.0 inch LCD module?

The display has a 1024 × (RGB) × 600 resolution, which is suitable for clear POS UI, menus and data screens on a 7.0 inch diagonal.

Q2: Can this TFT LCD Module work with my existing RGB controller?

In most cases, yes. RONDELI can adjust RGB pin definition, FPC length and connector type to match your mainboard. Please share your controller and timing requirements for confirmation.

Q3: Is capacitive touch available for this 7.0 inch LCD module?

Yes, an optional capacitive touch panel with IIC interface and 5-finger multi-point support is available. Cover lens thickness, hardness and surface treatment can be customized.

Q4: Is this display suitable as a High Brightness LCD for bright shops?

With 500 nits brightness and normally black mode, this module can serve as a High Brightness LCD in bright indoor retail and hospitality environments.

Q5: Can RONDELI support small MOQ for pilot projects?

Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.

About RONDELI Display

RONDELI Display is a manufacturer of TFT LCD Module products, High Brightness LCD solutions and touch displays for POS, retail and industrial applications. The company focuses on long-term supply, stable quality and engineering support for OEM and ODM projects. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.

Request a quote for the 7.0 inch LCD module

For OEM inquiries on this 7.0 inch LCD module, providing the following details helps speed up the quotation process:

• Target application (Smart POS, retail kiosk, industrial HMI, etc.)
• Required brightness and touch configuration (with or without cover lens)
• Interface and connector requirements (RGB pin definition, FPC length)
• Estimated annual quantity and any custom branding or packaging needs

Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2–3 weeks.
