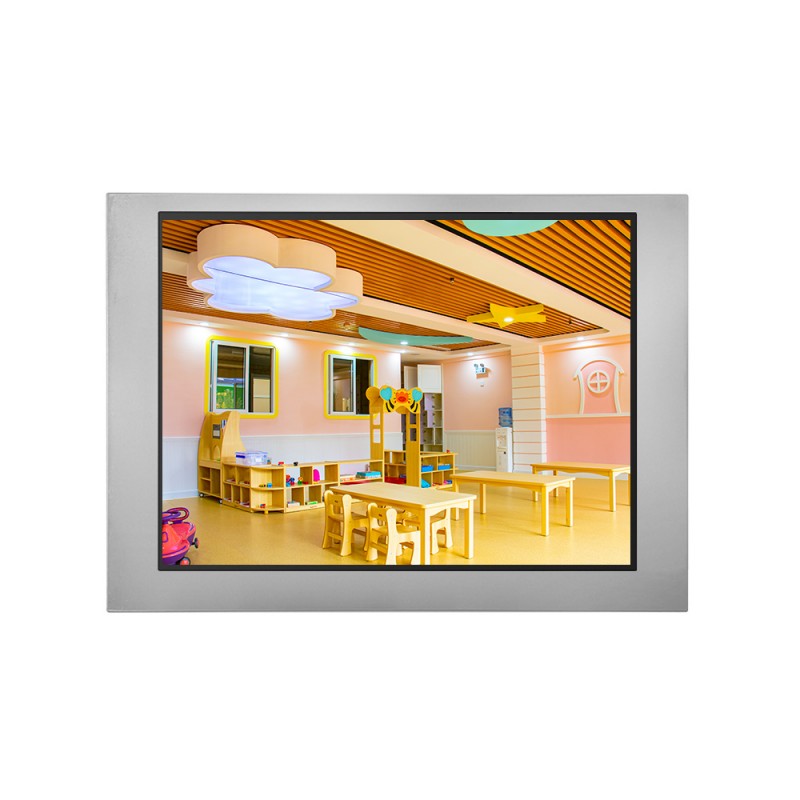

5.7inch lcd tft 640*480 1000nits mipi IPS tft lcd touch panel for paraglider

Item

Specification

Unit

LCD screen size

5.7

inch

Display Mode

Normally Black

--

Resolution

640x(RGB)x480

Pixel

Pixel arrangement

RGB Vertical Stripe

Viewing angle

Full Viewing (IPS)

-

TP-Module outline

127 (W) ×95.8 (H) ×8.0 (T)

LCM Module outline

127(W) ×98.5(H) ×5.85(T)

mm

LCD AA

115.2(W)×86.4(H)

mm

Display Colors

16.7M

colors

Driver IC

/

-

LCDInterface

RGB/MIPI/LVDS

--

Luminance

1000

nits

Backlight Arrangement

White LED

--

Capacitive Touch panel

Option

Touch IC

GT911

--

Touch point

Multi-point

--

Touch structure

GG

--

Touch Interface

IIC

--

Cover lens

GLASS

mm

Surface hardness

≧6H

--

Cover lensColors

Black

--

Weight (LCM/TP+LCM)

/

kg

Operating Temperature

-20℃~ +70℃

Deg.c

Storage Temperature

-30℃~ +80℃

Deg.c

PIN NO.

PIN DEF.

FUNCTION DESC.

1

NC

NC

2-3

VDD

POWER SUPPLY（3.3V）

4

NC

NC

5

RESET

LCM  RESET  PIN(3.3V)

6

NC

NC

7

GND

Power ground

8

MIPI D0-

Negative MIPI differential data input

9

MIPI D0+

Positive MIPI differential data input

10

GND

Power ground

11

MIPI D1-

Negative MIPI differential data input

12

MIPI D1+

Positive MIPI differential data input

13

GND

Power ground

14

MIPI CLK-

Negative MIPI differential CLOCK input

15

MIPI CLK+

Positive MIPI differential CLOCK input

16

GND

Power ground

17

MIPI D2-

Negative MIPI differential data input

18

MIPI D2+

Positive MIPI differential data input

19

GND

Power ground

20

MIPI D3-

Negative MIPI differential data input

21

MIPI D3+

Positive MIPI differential data input

22

GND

Power ground

23-24

NC

NC

25

GND

Power ground

26-29

NC

NC

30

GND

Power ground

31-32

LEDK(-)

LED backlight cathode

33-38

NC

NC

39-40

LEDA(+)

LED backlight anode
