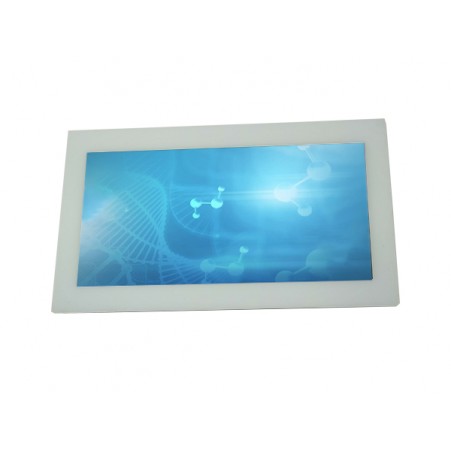

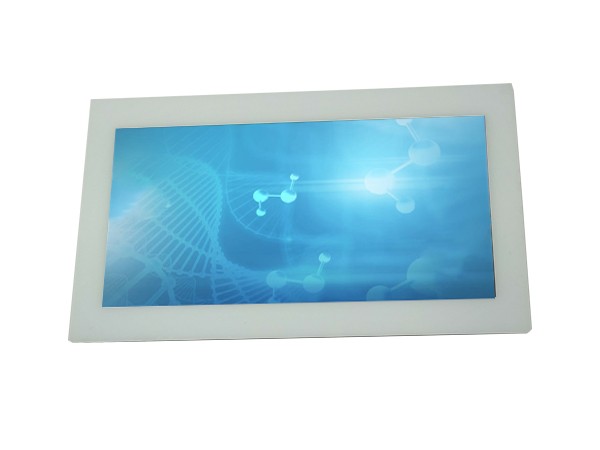

7 inch 800x480 RGB interface Full view lcd tft display touch panel
7.0 inch LCD 800xRGBx480 resolution with RGB interface LCD Module for Industrial Control
Product advantages: RGB, high brightness display
LCM Model: R70001-800480RY-KC
LCD Size:7.0inch
LCD Resolution:800x480
LCM Interface:RGB
Display view angle: ALL VIEW
Display brightness: 500nits
Touch panel: capacitive touch screen
|
Item |
Specification |
Unit |
|
LCD screen size |
7.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
800x(RGB)x480 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
ALL |
- |
|
CTP outline dimension |
176.88 (H) x112.22(V) x5.65(D) |
|
|
Module outline dimension |
164.86 (H) x99.96 (V) x3.5(D) |
mm |
|
LCD AA |
153.84(H) x85.63 (V) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST7265 |
- |
|
LCDInterface |
RGB |
-- |
|
LCM Luminance |
500(TPY) |
cd/㎡ |
|
Backlight Arrangement |
White LED（3S9P） |
-- |
|
Touch IC |
GT911 |
-- |
|
Touch point |
5 point |
-- |
|
Touch structure |
G+G |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
Glass |
mm |
|
Surface hardness |
6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
