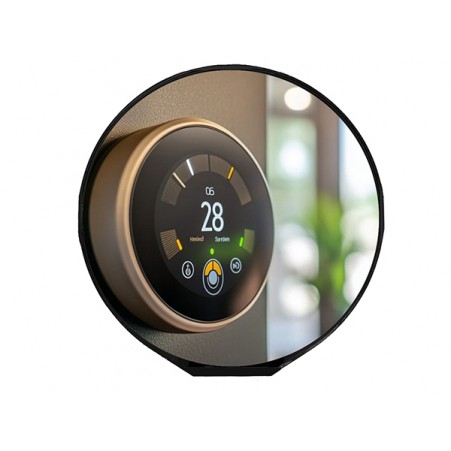

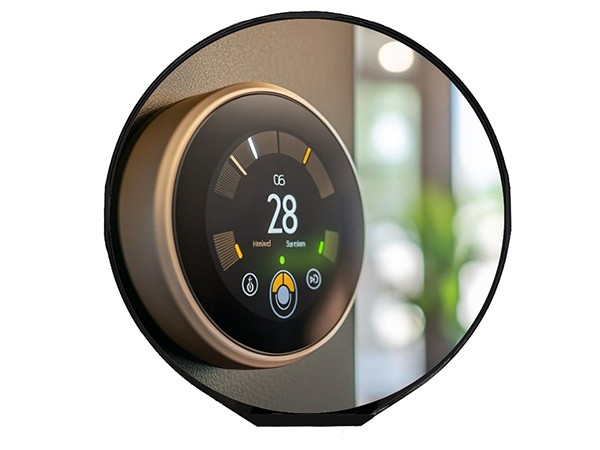

8.0inch 1080*1080 round LCD display with MIPI IPS for white goods
8.0inch incell LCD module normally Black 1080xRGBx1080MIPI interface customized lcd for smart home
Product advantages:high quality tft lcd,high brightness lcd module touch panel
LCM Model:R80008-10801080MZ
LCD Size:8.0inch
LCDPixels:1080x1080
LCM Interface:MIPI
Display view angle:IPS
DisplayLuminance:250nits
Touch Screen: incell LCD with touch function
8.0inch round LCD module 1080x1080 high quality tft lcd parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
8.0 incell LCD |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
1080x(RGB)x1080 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
219.3 (W) ×241.16 (H) ×4.0(T) |
mm |
|
LCD AA |
208.01(W)×208.01(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
FT8201S(TDDI) |
- |
|
LCD Interface |
MIPI |
-- |
|
Luminance |
1000 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Capacitive touch |
|
|
Touch IC |
TDDI(incell LCD) |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
