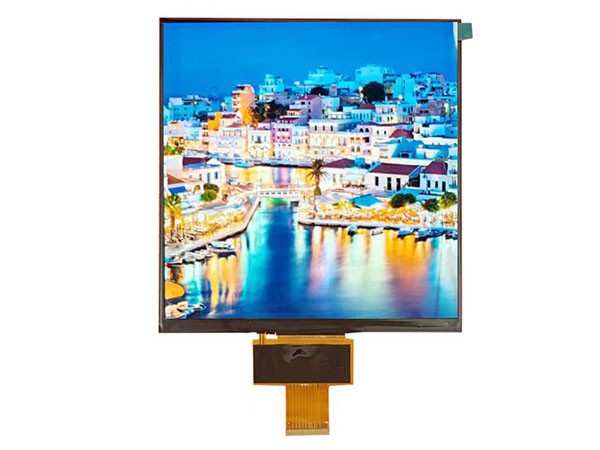

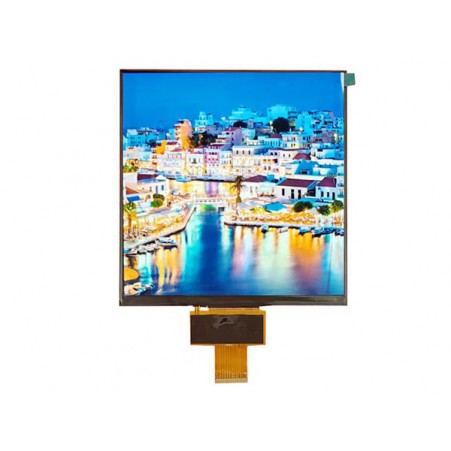

7.5inch 800*800 MIPI Square display for smart home
7.5inchsquare LCDnormally black800xRGBx800resolution withmipi interfacecircular lcd display module for LOT/medical instument
Product advantages: high brightness squarelcd display
LCM Model:R75001-800800MZ
LCD Size:7.5inch
LCD Resolution:800x800
DriverIC:ILI9881C
LCM Interface:MIPI
LCM OD:142.2(W)x148.2(H)x4.86(T)
LCD AA:135.36(W)x135.36(H）
Viewing Aangle:Full View
Display brightness:1000nits
7.5inchsquare LCD screen 800x800 tft lcd module parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
7.5 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
800x(RGB)x800 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full View |
- |
|
Module outline dimension |
142.2(W) ×148.2(H) ×4.86(T) |
mm |
|
LCD AA |
135.36（W）×135.36（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ILI9881C-0HT00GA |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
1000 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
- |
-- |
|
Cover lensColors |
- |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
