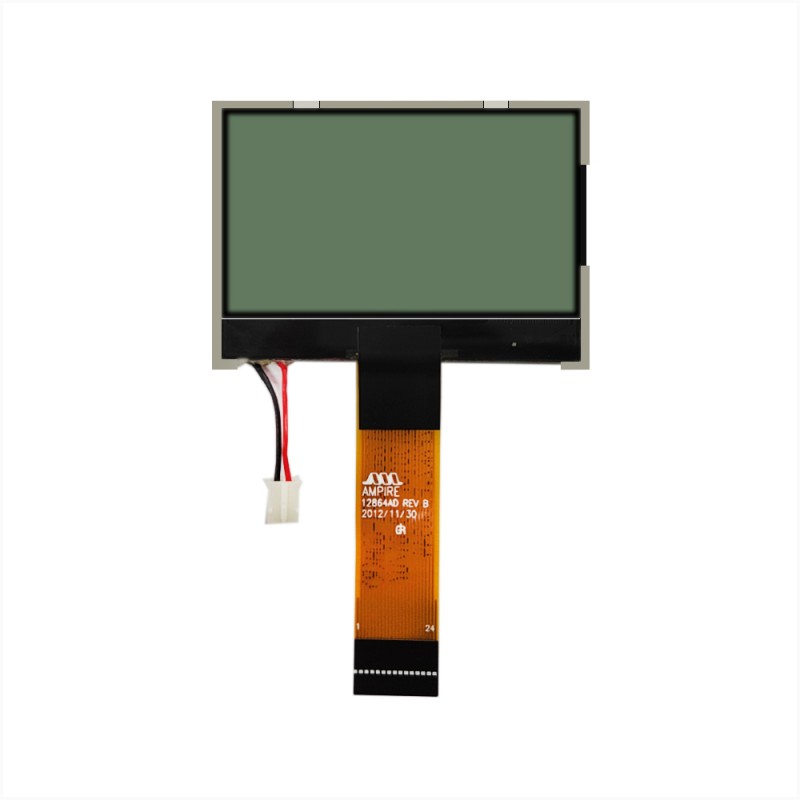

FSTN lcd display 128*64 MCU transflective lcd modules
FEATURES ：
(1) Display Type: FSTN/Black-White, 6 O’CLOCK, Transflective/Positive
(2) Driving Method: 1/65DUTY, 1/9 BIAS
(3) Built-in controller: ST7567
(4) LED Backlight: 4 PCS WHITE LED Blacklight,If<60mA & Vf=5.0±0.2V
(5) VDD:3.0V Vop ：9.0V
Liquid Crystal Display Module (LCM)FSTN lcd parameters
|
Item |
Specification |
Unit |
|
LCD screensize |
/ |
inch |
|
Display Type |
128x64 |
Pixel |
|
LCD Type |
FSTN, Transflective / Positive |
-- |
|
Driver Condition |
1/64DUTY, 1/9 BIAS |
|
|
Viewing angle |
6 O’CLOCK |
- |
|
Backlight Type |
White LED Backlight , If<=60mA & Vf=5.0±0.2V |
|
|
LCM Module Outline |
55.2 (W) * 39.8 (L) * 4.0 (H) |
mm |
|
Viewing Area |
45.2(W) x27.0(H) |
|
|
LCD AA |
40.92(W) x24.28(H) |
mm |
|
Dot Size
|
0.28(W) x0.34(H)
|
|
|
Dot Pitch
|
0.32(W) x0.38(H)
|
|
|
Driver IC |
ST7565P |
- |
|
LCD Interface |
MCU |
-- |
|
Luminance |
/ |
cd/㎡ |
|
Weight (LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
