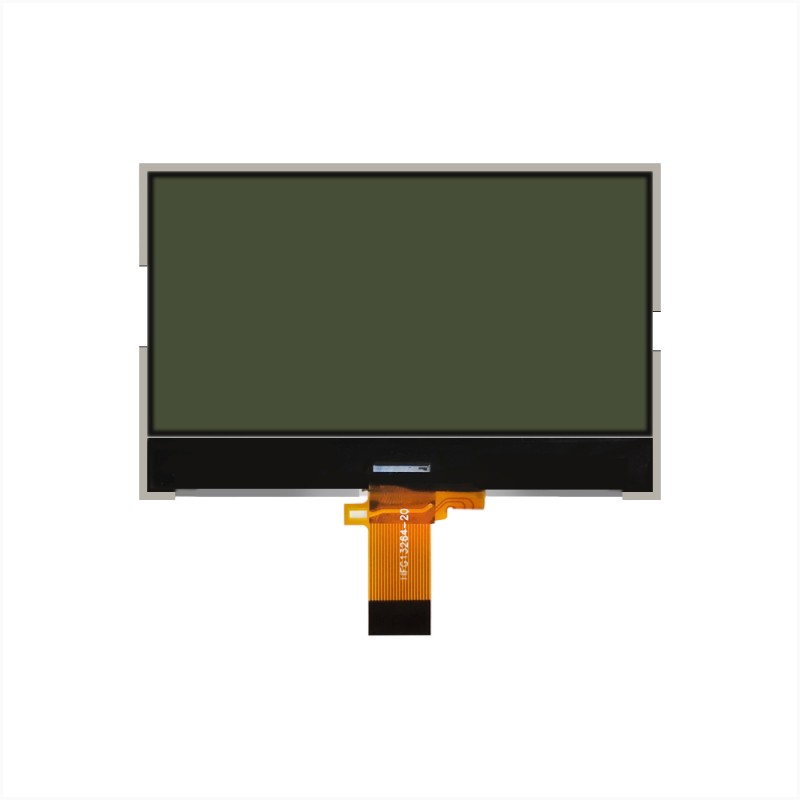

FSTN lcd module display 132*64 spi lcd screen
FEATURES:
(1) Display Type: FSTN, 6 O’CLOCK, Transflective / Positive
(2) Driving Method: 1/64DUTY, 1/9 BIAS
(3) Built-in controller: ST7565P
(4) LED Backlight: 6 PCS GREEN LED Backlight , If=16±3mA & Vf=8.0±0.2V
(5) VDD: 3.3±0.2V, Vop:12.3±0.2V
LCM Model:R13264-20
LCD Resolution:132x64
LCM Interface:SPI
Liquid Crystal Display Module (LCM)FSTN lcd parameters
Item |
Specification |
Unit |
LCD screensize |
/ |
inch |
Display Type |
132x64 |
Pixel |
LCD Type |
FSTN,, Transflective / Positive |
-- |
Driver Condition |
1/64DUTY, 1/9 BIAS |
|
Viewingangle |
6 O’CLOCK |
- |
Backlight Type |
6 PCS GREEN LED Backlight , If=16±3mA & Vf=8.0±0.2V |
|
LCM ModuleOutline |
87.0(W)x55.5 (H)x9.6(T) |
mm |
Viewing Area |
80.5(W) x 41.0(H) |
|
LCD AA |
76.52 (W) x37.08(H) |
mm |
Dot Size |
0.54(W) x0.54(H) |
|
Dot Pitch |
0.58(W) x0.58(H) |
|
Driver IC |
ST7565P |
- |
LCDInterface |
SPI |
-- |
Luminance |
/ |
cd/㎡ |
Weight (LCM/TP+LCM) |
/ |
kg |
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
