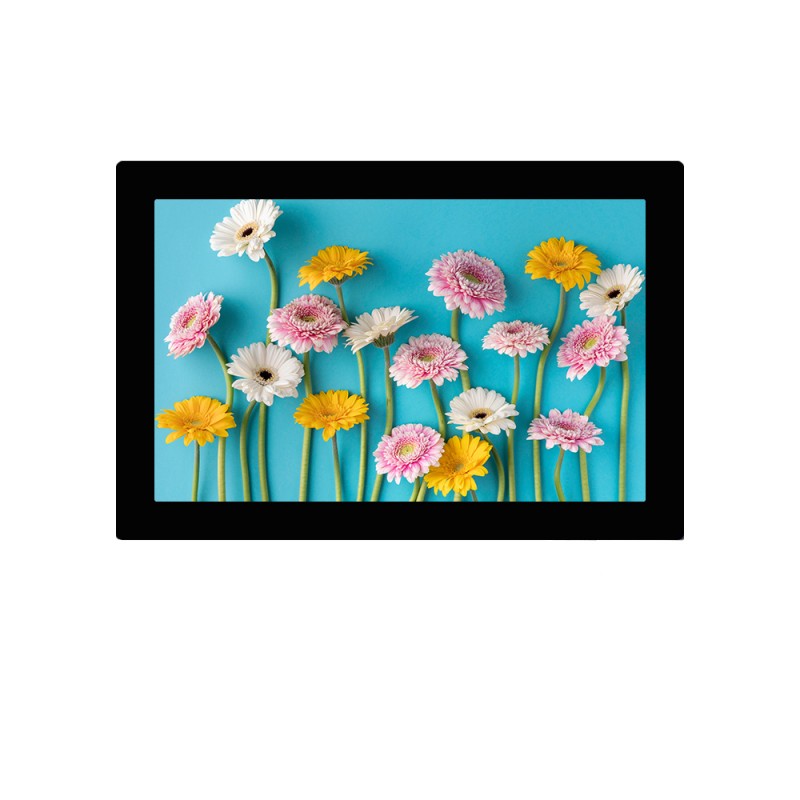

7inch 800x480 landscape Touch display 50pin RGB interface for industrial LCD screen
7inch liquid crystal module normally Black 800xRGBx480 RGB interface 50PIN with capacitive touch panel for medical device
Product advantages:multi-point touch ,RGB lcd display module
LCM Model:70007-800480RT-KC
LCD Size:7.0inch
LCDPixels:800x480
LCM Interface:RGB
Display view angle:IPS
Display Luminance:300nits
Touch Screen: capacitive touch
7inch touch display 800x480 RGB interface tft lcd parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
7.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
800x(RGB)x480 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
176.7 (W) ×111.7 (H) ×7.05 (T) |
|
|
LCM Module Outline |
165(W) ×100(H) ×5.3 (T) |
mm |
|
LCD AA |
153.84(W)×85.63(H) |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
ST7265 |
- |
|
LCDInterface |
RGB |
-- |
|
Luminance |
300 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Touch panel |
Capacitive touch |
|
|
Touch IC |
GT911 |
-- |
|
Touch point |
Multi-point(5point) |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lens colors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
