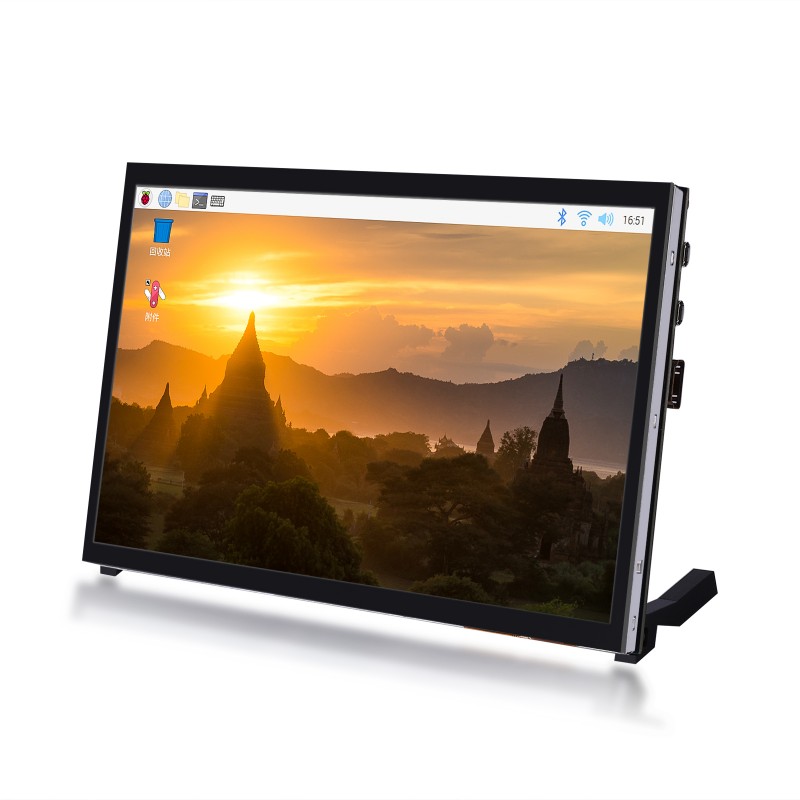

HDMI 10.1inch 1024x600 tft lcd modules with capacitive touch panel
R10101RT-TP-HDMI has the following features:
1. The 10.1inch display has the advantages of high color gamut, pure chromaticity and long color life.
2. The hardware resolution is 1024×600, and the resolution can be configured by software up to 1920×1080.
3. 5-point capacitive touch control, tempered glass capacitive touch panel.
4. Supports Pi OS/ Ubuntu / Kali and Retropie.
5. Ubuntu is supported when used with Jetson.
6. When used as a computer monitor, supports Windows 11/10/8.1/8/7.
7. Support mainstream game consoles, such as MicrosoftXbox360, Sony PS4, Nintendo SWITCH, etc.
8. Support Chinese and English OSD menu (usedfor power control, adjust brightness, contrast, volume, etc.)
9. With 3.5mm audio interface, support HDMI audio output.
R10101RT-TP-HDMI is a general purpose 10.1inch HDMI display with a resolution of 1024×600
and a capacitive touch panel. Can also be used as a computer monitor.
|
Item |
Contents |
remarks |
|
Display Interface |
HDMI 1.1 |
type A HDMI |
|
Touch Interface |
USB 1.1 |
Micro USB |
|
Touch points |
5 points |
- |
|
Display Size (Diagonal) |
10.1 |
inch |
|
Display Resolution |
1024RGB×600 |
pixel |
|
Display Type |
TFT/IPS |
- |
|
Audio power amplifier |
3watt |
Note1 |
|
Module size (W ×H) |
235.00×143.00 |
mm |
|
Module Weight |
483 |
gram |
|
Materials |
ROHS Compliant |
- |
