Square LCD Screen Guide: Specifications, Applications & Leading China Manufacturers

Views: 36 Update date: Jan 14,2026

Understanding Square LCD Screens

Square LCD screens feature 1:1 aspect ratios (typically 2.4", 2.8", 3.5", 4.3") ideal for applications requiring symmetrical displays, compact interfaces, or square viewing windows. Unlike standard 16:9 widescreen panels, square LCDs excel in handheld instruments, control panels, security cameras, medical devices, automotive dashboards, and industrial HMIs where space constraints demand perfectly proportioned screens.

Square LCD screen China manufacturers dominate global production with advanced COG/COB assembly, capacitive touch integration, wide temperature ranges (-30°C to +85°C), and brightness levels up to 1000 nits. Leading suppliers offer TN, HTN, STN, FSTN, VA, and full-color TFT technologies meeting automotive (AEC-Q100), medical (ISO13485), and industrial standards.

Top 15 Questions Square LCD Screen Customers Always Ask

1. What sizes are available for square LCD screens?

Common Square Sizes:

Diagonal	Resolution	Aspect Ratio	Applications
2.4"	320x320	1:1	Wearables
2.8"	480x480	1:1	Smart instruments
3.5"	320x320, 480x480	1:1	Medical devices
4.3"	480x272 (close to square)	~1.76:1	Automotive

Custom sizes from 1.77" to 5.5" available.

2. What LCD technologies exist for square screens?

Technology Comparison:

Type	Colors	Viewing Angle	Contrast	Cost	Best Use
TN	Monochrome	120°	5:1	$	Low cost
HTN	Monochrome	140°	8:1	$$	Better angle
STN	4096 colors	160°	12:1	$$	Mid-range
FSTN	High contrast mono	170°	25:1	$$	Sunlight
TFT	16.7M colors	178°	800:1	$$$	Premium
VA	High contrast	170°	1000:1	$$$	Dark environments

3. Can square LCD screens integrate touch?

Touch Technology Options:

Resistive: 4/5-wire (pressure sensitive)
Capacitive: Projected (multi-touch)
Surface Capacitive: Single touch
IR Touch: Durable, no glass

Popular Combo: 3.5" TFT + PCAP touch (480x480)

4. What operating temperatures do industrial square LCDs handle?

Temperature Ranges:

Grade	Storage	Operating	Applications
Commercial	-20~70°C	0~60°C	Consumer
Industrial	-30~85°C	-20~70°C	HMI, kiosks
Extended	-40~105°C	-30~85°C	Automotive
Military	-55~125°C	-40~100°C	Defense

5. What brightness levels are available?

Nits Guide:

Brightness	Environment	Applications
300-500 nits	Indoor	Tablets
500-800 nits	Bright indoor	Retail
800-1200 nits	Semi-outdoor	Transportation
1200-2000 nits	Direct sunlight	Marine

6. What interfaces do square LCD screens support?

Common Interfaces:

RGB 24-bit: High color

MCU 8/16-bit: Parallel

SPI/I2C: Low pin count

MIPI DSI: Mobile

LVDS: High resolution

USB: Touch

7. What power consumption is typical?

Typical Specs:

Size	Type	Voltage	Current	Power
2.8"	TFT	3.3V	40mA	0.13W
3.5"	TFT+CTP	5V	120mA	0.6W
4.3"	Industrial	12V	300mA	3.6W

8. Can square LCD screens be customized?

Customization Options:

Sizes: 1.8"-5.5" diagonal
Resolution: 128x128 to 800x800
Touch: Resistive/capacity
Brightness: 300-2000 nits
Interface: Customer spec
Optical bonding: Anti-glare, touch

9. What certifications do industrial square LCDs carry?

Essential Certifications:

ISO9001: Quality
ISO14001: Environment
IATF16949: Automotive
ISO13485: Medical
AEC-Q100: Automotive grade
CE/FCC/RoHS: Export

10. What is the lifespan of square LCD screens?

MTBF (Mean Time Between Failures):

Commercial: 30,000 hours

Industrial: 50,000-70,000 hours

High-brightness: 40,000-60,000 hours

Backlight: 50,000 hours @ 50% brightness

11. How do Chinese square LCD manufacturers compare?

China vs Global:

Factor	China	Japan/Korea
Cost	40-60% lower	Premium
MOQ	500-1000 pcs	5K+ pcs
Lead Time	4-6 weeks	8-12 weeks
Customization	High	Limited
Quality	Matches specs	Equivalent

12. What applications use square LCD screens?

Key Markets:

Industrial HMI: PLC interfaces
Medical: Patient monitors, infusion pumps
Automotive: Instrument clusters
POS: Receipt printers
Security: DVR/NVR displays
Smart meters: Electricity/gas

13. Can square LCDs handle vibration/shock?

Environmental Ratings:

Vibration: 1G, 10-500Hz

Shock: 10G, 11ms

IP65: Dust/water resistant

MIL-STD-810: Military

14. What is the minimum order quantity?

Samples: 10-50 pcs Small batch: 500-1000 pcs Production: 3000+ pcs

15. What documentation is provided?

• RoHS/REACH certs

• Material data sheets

• Reliability test reports

• Optical characteristics

• EMI/EMC test data

Comparison Table: Square LCD Screen Technologies

Specification	TN	STN/FSTN	TFT	MIP Display
Resolution	128x128	240x128	480x480	320x320
Colors	Mono	65K	16.7M	B/W
Contrast	5:1	20:1	800:1	Infinite
Viewing Angle	120°	160°	178°	178°
Power	10mW	20mW	100mW	1mW
Cost	$	$$	$$$	$$
Refresh Rate	Slow	Medium	Fast	Ultra-low
Applications	Basic	Mid-range	Premium	Always-on

Case Study: Industrial Automation HMI Upgrade

Challenge: German machine builder needed rugged 3.5" square displays for harsh factory environments.

RONDELI Solution:

• 3.5" FSTN 320x320

• -30~85°C operation

• 800 nits sunlight readable

• Resistive touch

• MIPI interface

• 10K pcs/year

Results:

• MTBF: 65,000 hours

• Field failure: <0.1%

• Cost: 45% vs Japan

• Delivery: JIT 4-week lead

Client Testimonial: Medical Device OEM

"RONDELI's square LCD screen China manufacturing powers our infusion pump displays. 2.8" TFT+CTP modules exceed ISO13485 requirements. Perfect square format fits our UI perfectly. Leading square LCD screen manufacturer with automotive-grade reliability."

In‑Depth Analysis: Square LCD Construction

COG (Chip-On-Glass) Assembly

Driver IC: COF (Chip-On-Film) Connection: ACF bonding Pitch: 35-50μm Reliability: 85°C/85%RH 1000hrs

Optical Stack

Polarizer: Wide view Glass: 0.7mm FIT Backlight: Side LED edge-lit Diffuser: DBEF + BEF Brightness Enhancement: 120%

Touch Integration

PCAP: ITO sensor on glass Controller: I2C/SPI USB Multi-touch: 5 points Glove: 5mm thickness Wet operation: Supported

Manufacturing Process Excellence

8-Step Production:

1. TFT array fabrication (6-8μm process)

2. Color filter alignment

3. Liquid crystal injection

4. COG bonding (ACF)

5. Touch lamination

6. Backlight assembly

7. Optical inspection (AQL 0.65)

8. Reliability burn-in (168hrs)

Why RONDELI Excels in Square LCD Manufacturing

E-E-A-T Credentials:

Experience: Automotive/medical qualified

Expertise: ISO9001/14001/IATF16949/ISO13485

Authoritativeness: ABB, 3M, Schneider partner

Trustworthiness: 50+ countries, full traceability

Square LCD Advantages:

• Native 1:1 panels (no cropping)

• Perfect UI scaling

• Wide viewing angle options

• Long-term availability

Recommended Reliable Square LCD Screen China Manufacturer

RONDELI Display stands as the premier square LCD screen China manufacturer. With cutting-edge production and global certifications:

• 2.4"-4.3" square TFT/STN/FSTN

• Automotive-grade (-40~105°C)

• Medical/Industrial qualified

• Custom COG/COB/TAB

• Touchscreen integration

• Partners: ABB, Schneider, Avnet

Contact RONDELI for superior Square LCD Screen solutions.

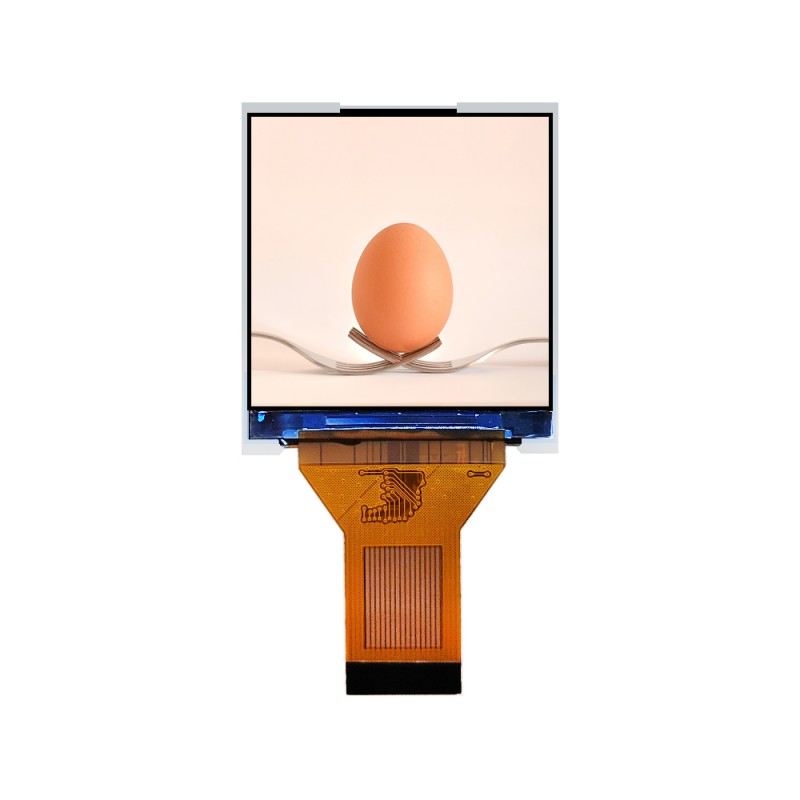

Square LCD Screen
