TFT LCD Module Interfaces: How to Choose Between SPI, RGB, MIPI and LVDS

Choosing the right interface is often the first and most important decision in any TFT LCD module project. The interface determines which mainboard or SoC you can use, how complex your FPC and connector design will be, how much power the display consumes, and how much software effort is needed to bring it up. Yet many teams select a display based only on size and resolution, then discover late in development that the interface does not match their host platform.

This guide compares the four most common TFT LCD module interfaces — SPI, RGB parallel, MIPI DSI and LVDS — explains when each is the right choice, and provides a practical troubleshooting section for the most common “display not working” scenarios. Whether you are building a wearable, a smart POS terminal, an industrial HMI or an automotive navigation display, understanding these interface trade-offs will save you weeks of redesign.

Why the interface is the first decision in a TFT LCD module project

The interface is not just a technical detail — it shapes the entire system architecture around the display. A wrong interface choice can force a mainboard redesign, a different SoC, a longer development cycle or a more expensive BOM.

Interface determines host compatibility

Not every mainboard can drive every type of display. An MCU with only SPI peripherals cannot directly drive a high-resolution MIPI panel, and an automotive LVDS board cannot easily interface with a small SPI display without a converter. Matching the TFT LCD module interface to your host from day one avoids costly redesigns later.

Interface affects FPC, connector and assembly

Different interfaces use different pin counts, signal types and cable requirements. SPI needs relatively few lines, RGB needs many parallel data lines, MIPI uses differential pairs, and LVDS uses differential pairs designed for longer distances. These differences directly affect your FPC design, connector selection and assembly process.

Interface affects power, EMI and software effort

High-speed interfaces like MIPI and LVDS transfer data faster but require more careful power integrity and EMI design. Simpler interfaces like SPI are easier to bring up but limit resolution and refresh rate. Your choice is always a balance between performance, power, cost and development effort.

Before diving into each interface, it helps to have a clear picture of your overall display requirements. For a broader view of how to select a display beyond just the interface, see our TFT LCD Module landing page, which covers size, resolution, brightness and application matching in detail.

SPI interface: best for small TFT LCD modules and MCU-based designs

SPI (Serial Peripheral Interface) is the simplest and most widely supported interface for small TFT LCD modules. It uses a small number of signal lines (typically SCK, MOSI, CS, DC and optional MISO) to send display data and commands from a microcontroller to the display driver.

When SPI is the right choice

• Your display is small (typically 1.28 to 3.5 inches).
• Your host is an MCU such as STM32, ESP32, Arduino or Raspberry Pi Pico.
• You need low power consumption for battery-powered devices.
• Your UI is relatively simple: text, icons, status indicators, basic graphics.
• You want the fastest and cheapest bring-up with minimal wiring.

Typical SPI TFT LCD module use cases

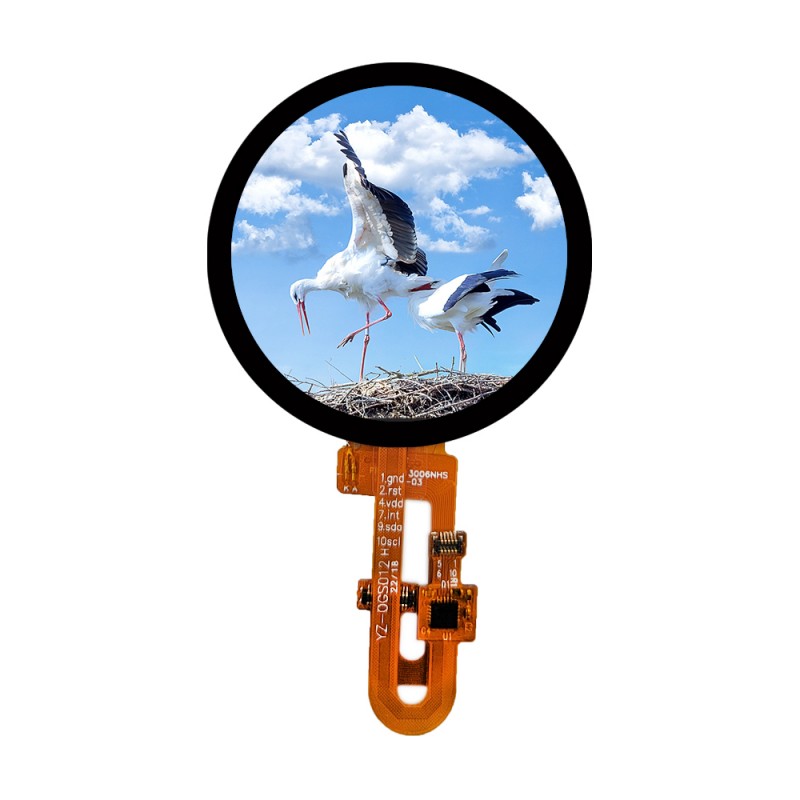

• Smart watch and wearable round displays (e.g., 1.28 inch 240x240 GC9A01).
• Small square displays for IoT devices and handheld gadgets.
• Simple industrial status panels and meter readouts.
• Prototyping and educational projects.

Common SPI connection issues and fixes

• Black screen, backlight on: Check CS and DC pin connections; confirm the driver IC (e.g., ST7789, GC9A01, ILI9341) initialization sequence is correct.
• Garbled or inverted colors: Verify SPI mode (CPOL/CPHA) matches the driver IC datasheet; check RGB order (RGB vs BGR).
• Display works but very slow: SPI clock speed may be too low; check maximum supported SPI clock for your driver IC and MCU.
• Touch not working: Confirm the touch controller (often XPT2046 or FT6236) IIC address and interrupt pin are correctly wired.

RGB parallel interface: best for POS, HMI and industrial mainboards

RGB parallel interface transmits pixel data over multiple parallel data lines (typically 16-bit or 18-bit RGB565/RGB666) along with horizontal sync, vertical sync, dot clock and enable signals. It is a mature, widely supported interface in POS terminals, industrial HMIs and embedded systems with dedicated display controllers.

When RGB is the right choice

• Your display is mid-size (typically 3.5 to 10.1 inches).
• Your mainboard or SoC has a built-in RGB/LCD controller (common in POS chipsets, industrial SoCs).
• You need moderate resolution (WVGA 800x480 to WXGA 1280x800).
• You want a mature, well-documented interface with broad ecosystem support.
• Your application is POS, retail kiosk, industrial HMI or control panel.

RGB timing, pinout and clock considerations

• Confirm the required dot clock frequency matches your resolution and refresh rate.
• Check sync signal polarity (HSYNC, VSYNC, DE) against your mainboard configuration.
• Verify RGB data format (RGB565, RGB666, RGB888) matches both the display driver and your framebuffer configuration.
• Confirm the FPC pin definition and connector type match your mainboard layout.

Common RGB display issues and fixes

• No display, backlight on: Check dot clock, HSYNC/VSYNC polarity and DE signal; confirm the mainboard RGB controller is enabled.
• Image shifted or scrolled: Timing parameters (front/back porch) do not match; adjust porch values in your display driver.
• Wrong or washed-out colors: RGB data format mismatch (e.g., sending RGB565 to a display expecting RGB666); adjust framebuffer format.
• Flickering: Dot clock instability or poor signal integrity; check clock source and add proper termination if needed.

For a typical RGB-interface application, see our 7.0 inch RGB TFT LCD module designed for Smart POS and retail terminals.

MIPI DSI interface: best for high-resolution and battery-powered devices

MIPI DSI (Display Serial Interface) is a high-speed differential serial interface standardized by the MIPI Alliance. It is the dominant interface in smartphones, tablets, PDAs and other mobile devices, offering high bandwidth over few signal lines with low EMI.

When MIPI DSI is the right choice

• Your display is 4 inches or larger with medium-to-high resolution.
• Your host is a mobile-oriented SoC (e.g., Qualcomm, MediaTek, Rockchip, Allwinner).
• You need low EMI for compact, battery-powered designs.
• You need high refresh rate or high resolution (HD, FHD or above).
• Your product is a PDA, handheld POS, tablet or smart terminal.

Lane count, timing and driver IC compatibility

• MIPI DSI supports 1, 2, 4 or more data lanes; higher resolution needs more lanes.
• Confirm your SoC's MIPI controller supports the required lane count and data rate.
• Check the display driver IC (e.g., EK79007, JD9365) is compatible with your SoC's MIPI D-PHY.
• Verify video mode vs command mode support matches your use case.

Common MIPI display issues and fixes

• No display: Lane count mismatch or D-PHY not initialized; confirm lane configuration in both SoC and display driver.
• Display works but flickers: Clock lane or data lane signal integrity issue; check PCB routing and impedance matching.
• Wrong resolution or stretched image: Panel timing parameters in the SoC driver do not match the display spec; adjust timing in device tree or driver.
• Touch not working: Touch IC (often GT911, GT9271) IIC address conflict or interrupt not configured; check IIC bus and IRQ pin.

For a typical MIPI application, see our 7.0 inch MIPI TFT LCD module designed for PDA and handheld POS devices.

LVDS interface: best for automotive, long cable runs and noisy environments

LVDS (Low Voltage Differential Signaling) is a differential serial interface designed for high-speed data transmission over longer distances with excellent noise immunity. It is widely used in automotive displays, industrial equipment and any application where the display is physically far from the mainboard.

When LVDS is the right choice

• Your display is 7 inches or larger, especially bar-type or wide-format.
• Your mainboard is an automotive or industrial board with LVDS output.
• The display is physically distant from the mainboard (long cable run).
• Your environment has high EMI (engine bay, power cabinet, factory floor).
• You need stable operation across wide temperature ranges.

Channel count, cable length and EMI considerations

• LVDS typically uses 1, 2 or 4 data channel pairs plus a clock pair.
• Higher resolution or higher refresh rate needs more channel pairs.
• LVDS supports longer cable runs (tens of centimeters to over a meter) compared with RGB or MIPI.
• Differential signaling inherently rejects common-mode noise, making it ideal for electrically noisy environments.

Common LVDS display issues and fixes

• No display: Channel count mismatch or LVDS format (VESA vs JEIDA) mismatch; confirm both sides use the same mapping.
• Display works but has noise or artifacts: Cable too long, poor shielding or impedance mismatch; use proper LVDS cable with shielding.
• Wrong colors: LVDS mapping (VESA/JEIDA) or bit order mismatch; adjust mapping in the mainboard or display driver.
• Intermittent issues with vibration: Connector seating or cable strain relief issue; improve mechanical fixing.

For a typical LVDS application, see our 12.3 inch LVDS bar LCD module designed for navigation and automotive displays.

Interface comparison table: SPI vs RGB vs MIPI vs LVDS

Interface	Typical panel size	Host type	Cable length	Power/EMI	Best for
SPI	1.28"–3.5"	MCU / small SoC	Short (<10cm)	Low power, low EMI	Wearables, round/square small displays
RGB	3.5"–10.1"	POS SoC / industrial board	Medium	Moderate	Smart POS, HMI, industrial control
MIPI DSI	4"–10.1"+	Mobile/Android SoC	Short-medium	Low EMI, higher speed	PDA, handheld, high-res tablet
LVDS	7"–12.3"+	Automotive/industrial board	Long (tens of cm to 1m+)	Low EMI, noise-resistant	Automotive, navigation, long-distance

How to match a TFT LCD module to your mainboard: 5-step checklist

Use this simple flow to avoid the most common interface mismatch mistakes:

Step 1: Confirm mainboard interface (SPI/RGB/MIPI/LVDS)
   ↓
Step 2: Match resolution & timing to host capability
   ↓
Step 3: Confirm connector type, pinout & FPC length
   ↓
Step 4: Check power budget & EMI environment
   ↓
Step 5: Request sample & run bring-up test before bulk order

• Step 1: Identify what interface your mainboard or SoC actually outputs. Do not assume — check the datasheet or schematic.
• Step 2: Confirm your host can drive the target resolution and refresh rate over the chosen interface.
• Step 3: Match pin definition, connector type and FPC length; request a custom FPC if needed.
• Step 4: Check power budget (especially backlight current) and EMI environment (especially for automotive/industrial).
• Step 5: Always request a sample and run a bring-up test before committing to a bulk order.

Troubleshooting: TFT LCD module not working or not recognized

When a display does not work as expected, the issue is usually in one of a few predictable places. Use this table to narrow down the cause quickly:

Symptom	Likely cause	First check
Black screen, no backlight	Power/backlight enable not connected	Check backlight power & enable pin
Backlight on but no image	Interface/timing mismatch	Confirm RGB/MIPI/LVDS timing & lane count
Wrong colors / inverted	Pixel format or polarity mismatch	Check RGB order & sync polarity
Touch not working	IIC address / interrupt not configured	Confirm touch IC address & IRQ pin
Flickering under load	EMI or unstable power	Check cable routing & power decoupling
Works alone, fails after assembly	ESD damage or mechanical stress	Review assembly process & ESD protection

For display failures that appear only after assembly or in the field, ESD damage is a common root cause. Learn how to prevent it in our guide on LCD module ESD testing.

FAQ: TFT LCD module interface questions

Q1: Can I use a MIPI LCD module with an RGB-only mainboard?

Not directly. MIPI and RGB are fundamentally different interfaces. You would need a converter bridge chip (RGB-to-MIPI or MIPI-to-RGB), which adds cost, latency and complexity. It is usually better to choose a display with a native interface matching your mainboard.

Q2: Why does my SPI TFT LCD module show nothing after connecting?

The most common causes are: (1) CS or DC pin not connected correctly, (2) wrong SPI mode (CPOL/CPHA), (3) missing or incorrect initialization sequence for the driver IC, or (4) backlight enable pin not driven. Check these in order.

Q3: How do I know if my mainboard supports LVDS?

Check your mainboard schematic or SoC datasheet for "LVDS", "LVDS TX" or "Display Serial Interface" labels. Automotive and industrial boards commonly have LVDS output; consumer PC motherboards usually do not. If unsure, share your mainboard model with your display supplier for confirmation.

Q4: What information should I send for an interface compatibility review?

Provide: (1) your mainboard or SoC model, (2) the interface type and version it outputs, (3) target display size and resolution, (4) required FPC length and connector type, and (5) your application environment. With this information, a supplier can quickly recommend a compatible TFT LCD module or propose a custom FPC/connector solution.

Q5: Can I mix interfaces in one product (e.g., SPI for a small status display and LVDS for a main display)?

Yes, this is common in complex devices. For example, an automotive dashboard might use LVDS for the main instrument cluster and SPI for a small status or indicator display. Just ensure your mainboard has separate controllers or sufficient GPIO/SPI peripherals for both.

Get help matching the right interface to your project

Interface selection does not have to be a guess. By matching your mainboard's native interface, resolution capability and EMI environment to the right TFT LCD module, you can avoid costly redesigns and accelerate your development timeline.

If you are unsure which interface fits your project, share your mainboard model, target display size and application with our engineering team. We can review your requirements and recommend a compatible TFT LCD Module — or propose a custom FPC and connector solution — before you commit to a sample order.
