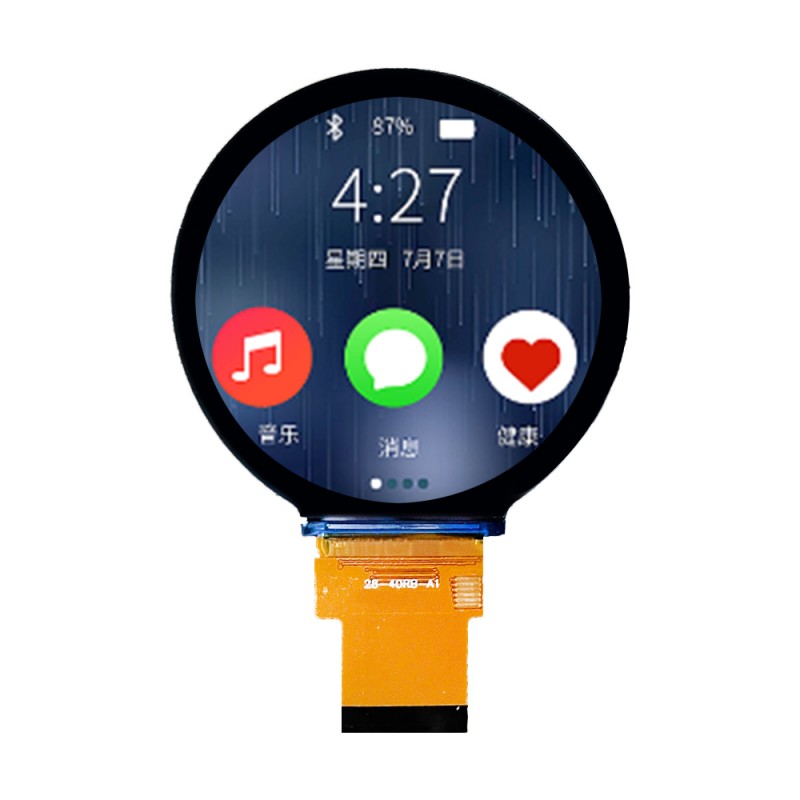

2.8inch LCD normally Black 480xRGBx480 MIPI interfacelcd display module for smart home
Product advantages: Round type lcd display with multi touch panel
LCM Model:R28002-480480RT
LCD Size:2.76inch
LCD Resolution:480x480
LCM Interface:RGB
LCM OD:73.03x76.48x2.30
LCDAA:70.128x70.128
Display view angle:IPS
Display brightness:300nits/800nits
Touch Screen:Optional capacitive touch
2.8inch LCD module 480x480 tft lcd moudles parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
2.76 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x480 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
/ |
|
|
LCM ModuleOutline |
73.03 (W) ×76.48 (H) ×2.3 (T) |
mm |
|
LCD AA |
70.128(W)×70.128(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
/ |
- |
|
LCDInterface |
SPI+RGB |
-- |
|
Luminance |
300/800 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
PCAP |
|
|
Touch IC |
CST328 |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
G+FF |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
