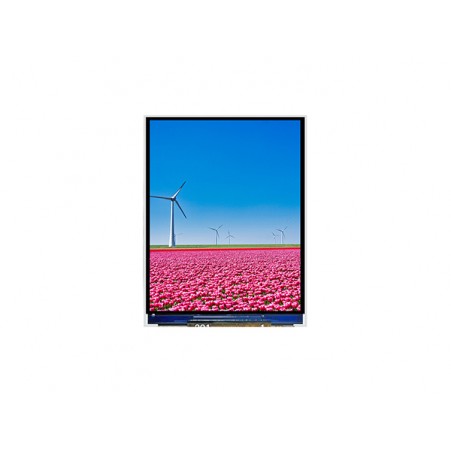

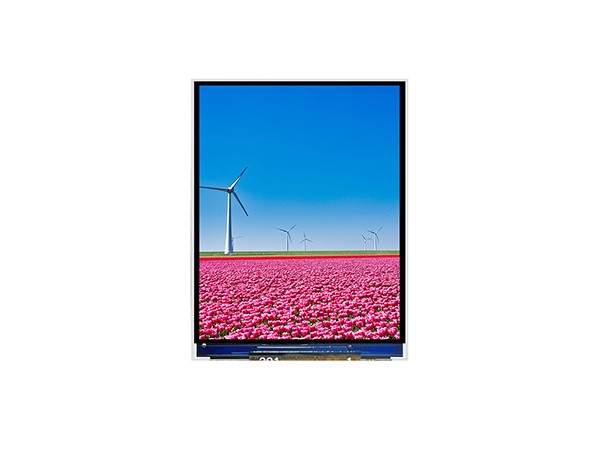

3.5inch 320*480 MIPI MCU IPS lcd module
3.5 inch lcd module normally white 320xRGBx480 pixel with mipi interface lcd display module for smart POS Device
Product advantages: high brightness lcd display
LCM Model:R35002-320480MZ
LCD Size:3.5inch
LCD Resolution:320x480
DriverIC:ILI9488/ST7796
LCM Interface:MIPI/MCU
LCM OD:54.76x83.29x2.4
LCD AA:48.96x73.44
Display view angle:12 o'clock
Display brightness:350/500nits
Touch Screen: with or without touch
3.5 inch lcd module 320x480 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
3.5 |
inch |
|
Display Mode |
Normally White |
-- |
|
Resolution |
320x(RGB)x480 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
12 o'clock |
- |
|
LCM Module outline |
54.76 (W) ×83.29 (H) ×2.4 (T) |
mm |
|
LCD AA |
48.96（W）×73.44（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ILI9488 |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
350 |
cd/㎡ |
|
Backlight Arrangement |
White LED（6S1P） |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
5 finger point |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
0.03 |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
3.5inch tft lcd module dimension MIPI interface：
