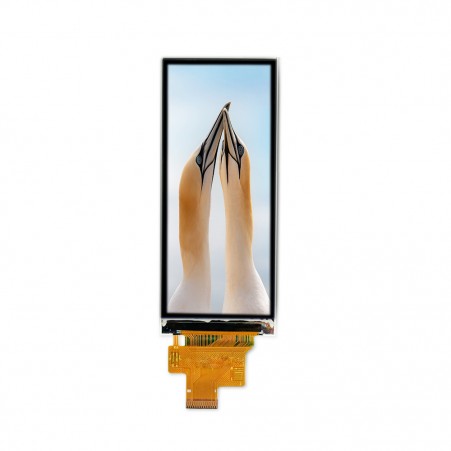

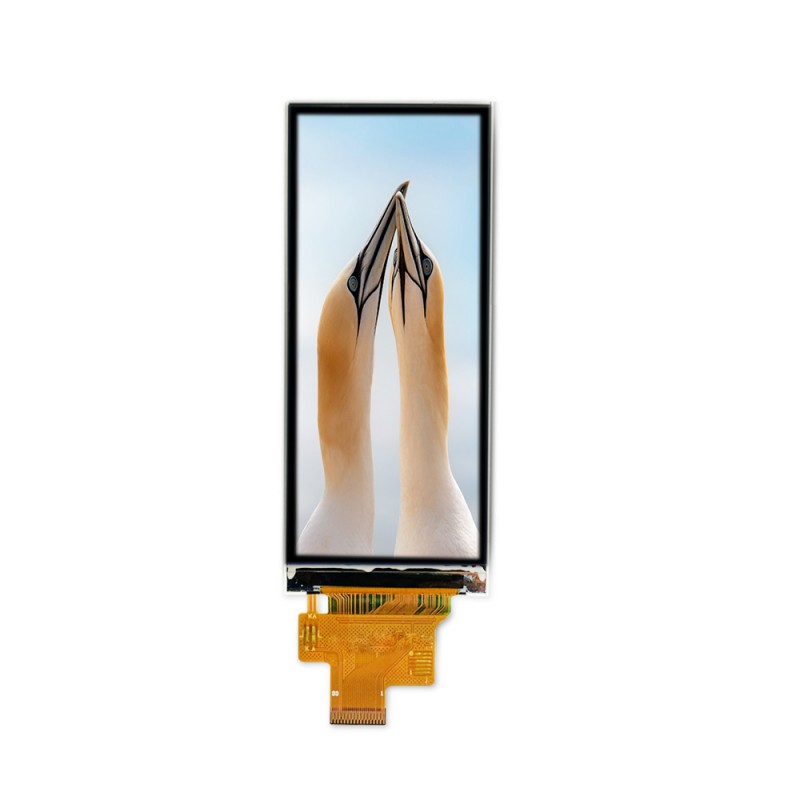

3.51inch tft LCD normally Black 340xRGBx800 MIPI interface lcd display for smart medical treatment
Product advantages: bar type display,bar lcd display,smart home
LCM Model:R35003-340800MR
LCD Size:3.5inch
LCD Resolution:340x800
LCM Interface:MIPI
Display view angle:IPS
DisplayLuminance:300nits
Touch Screen:optional capacitive touch
3.5inchon cell LCD module 340x800 bar lcd screen parameters
|
Item |
Specification |
Unit |
|
LCD screen size |
3.5 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
340x(RGB)x800 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
36.67(W) ×88.45(H) ×1.7(T) |
mm |
|
LCD AA |
33.97(W)×81.0(H） |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
ST7701S |
- |
|
LCD Interface |
MIPI |
-- |
|
Luminance |
300 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option PCAP |
|
|
Touch IC |
CST328 |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
