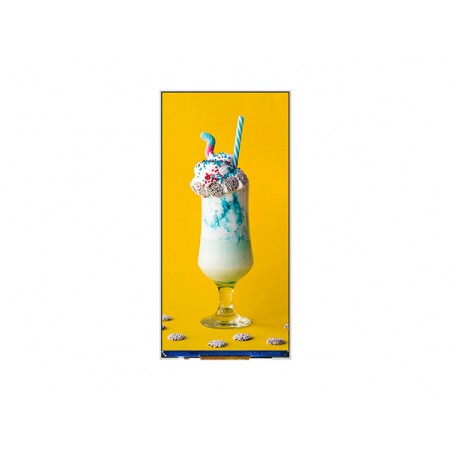

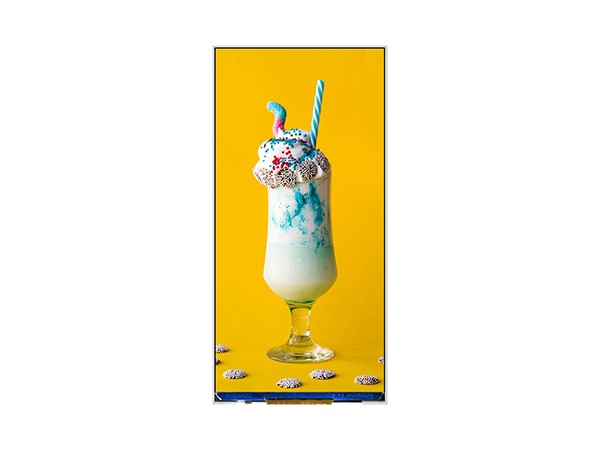

6inch Rectangle display 720*1480 MIPI IPS bar lcd tft for medical instrument
6inch Rectangle type lcd display full view 720xRGBx1480
MIPI interfacebar monitor for medical instrument
Product advantages:Rectangle display
LCM Model:R60001-7201480MZ
LCD Size:6inch
LCD AA:66.7x137.2
LCD Resolution:720x1480
LCD Interface:MIPI
Display view angle:IPS
DisplayLuminance:300nits
Touch Screen:optional capacitive touch panel
6inch LCD module 720x1480 rectangle tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
6.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
720x(RGB)x1480 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
70.5(W) ×145.2(H) ×2.1 (T) |
mm |
|
LCD AA |
66.74（W）×137.2（H） |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
JD9365DA |
- |
|
LCD Interface |
MIPI |
-- |
|
Luminance |
300(typ) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
PCAP |
|
|
Touch IC |
GT911 |
-- |
|
Touch point |
/ |
-- |
|
Touch structure |
G+G |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
Glass |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lens Colors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
