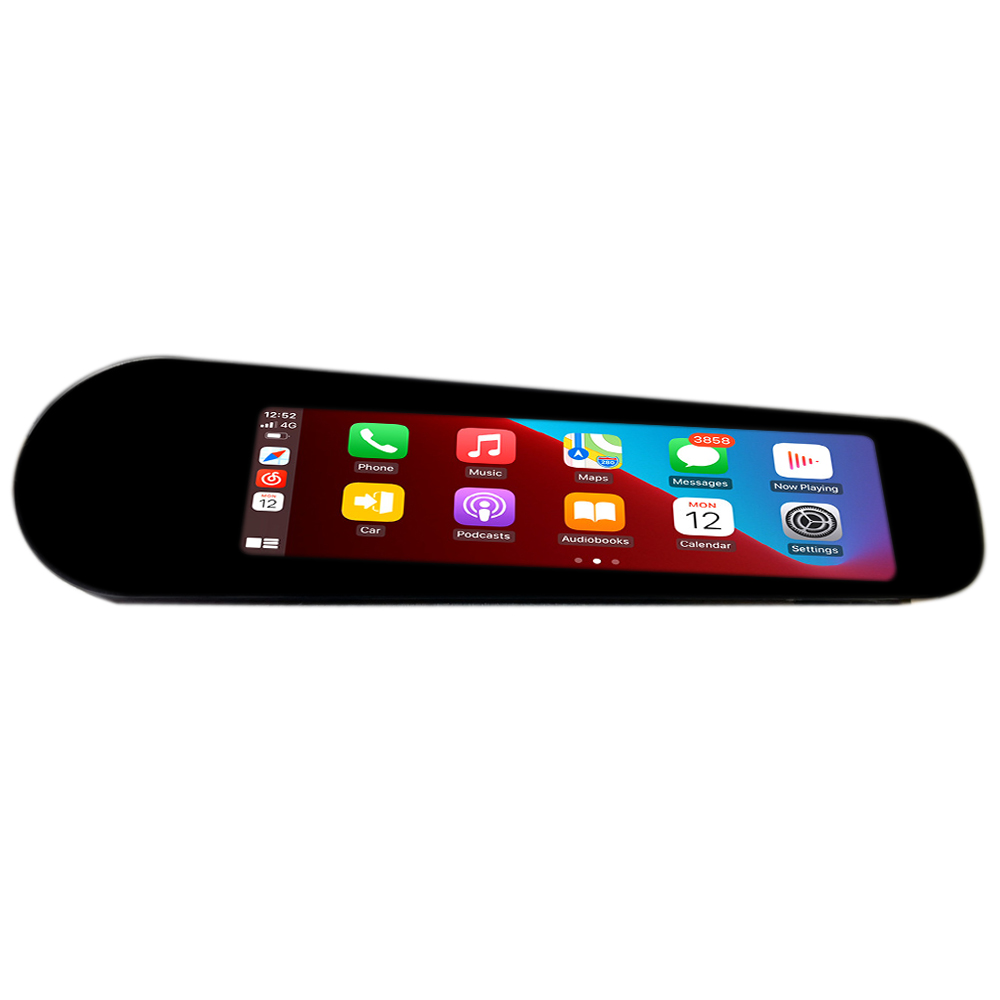

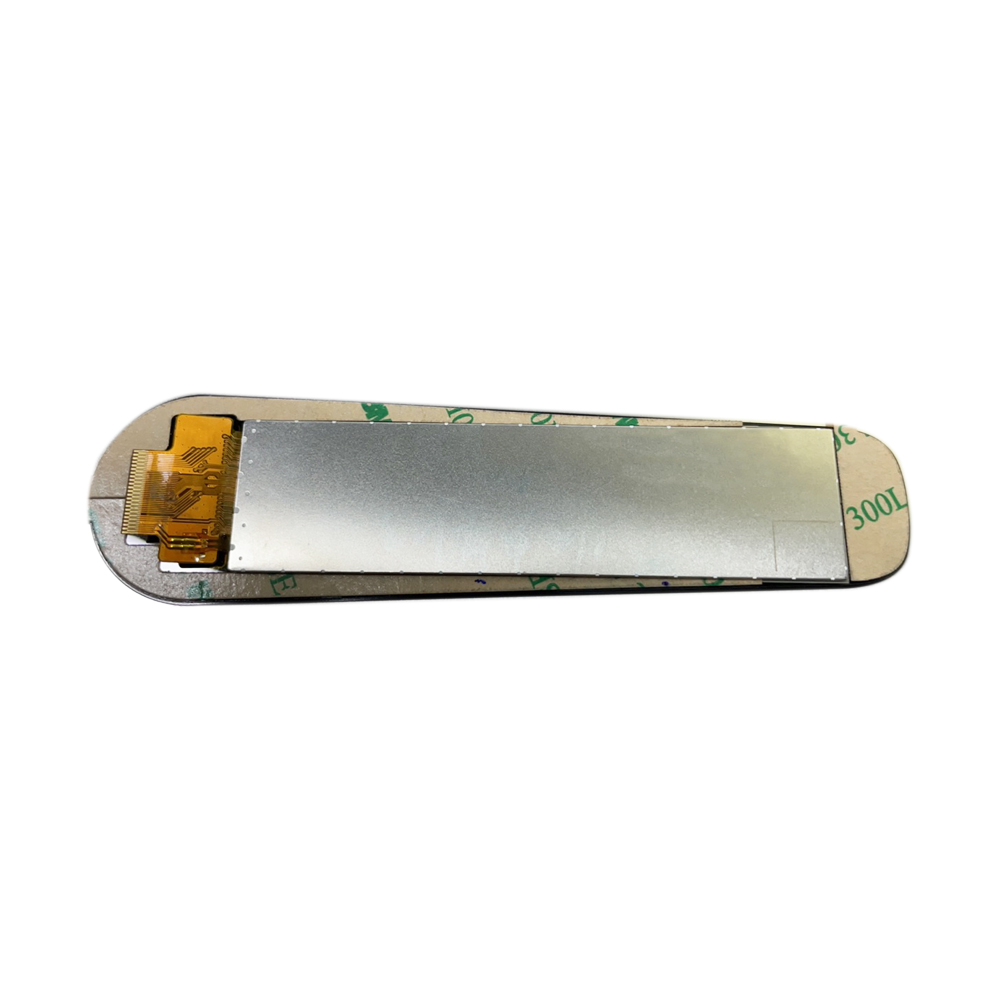

3.7inch 240*960 RGB stretched bar lcd display touch panel
3.7inch bar tft LCD normally Black 240xRGBx960
RGB interface lcd display for smart Handheld devicce,computer keybaord
Product advantages:bar tft display,stretched bar lcd
LCM Model:370001-240960RT-QC
LCD Size:3.7inch
LCD Resolution:240x960
LCD Interface:RGB
Display view angle:IPS
DisplayLuminance:300nits(option)
Touch Screen: capacitive touch panel
3.7inch bar LCD module 240x960 bar lcd screen parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
3.7 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
240x(RGB)x960 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
35.85(W) ×136.05(H) ×3.0(T) |
|
|
LCM Module Outline |
25.3(W) ×98.89(H) ×1.7(T) |
mm |
|
LCD AA |
22.86(W)×91.4（H） |
mm |
|
Display Colors |
65K |
colors |
|
Driver IC |
ST7701S |
- |
|
LCDInterface |
3Line SPI+16bit RGB |
-- |
|
Luminance |
300 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option PCAP |
|
|
Touch IC |
CST328 |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
Glass+film+film |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
