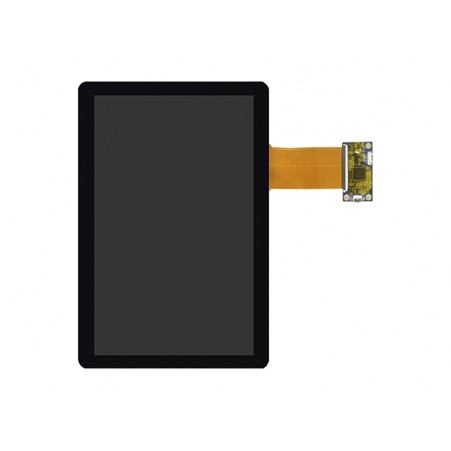

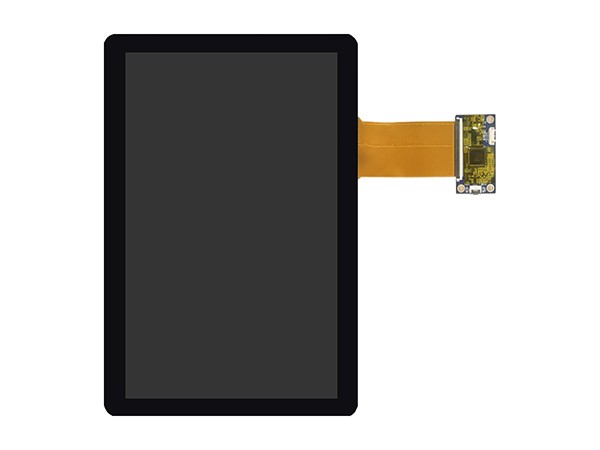

10.1inch1200x1920 portrait touch display MIPI interface for medical device
10.1inch a-Si TFT Liquid Crystal Display ODF cell normallyBlack 1200xRGBx1920
with capacitive touch panel for tablet
Product advantages:multi-point USB touch ,MIPI lcd display module
LCM Model:R101005-12001920MZ-QC
LCD Size:10.1inch
LCDPixels:1200x1920
LCM Interface:MIPI
Display view angle:IPS
DisplayLuminance:300nits
Touch Screen: Capacitive Touch
10.1inch touch display 1200x1920 MIPI interface lcd touch display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
10.1 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
1200x(RGB)x1290 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
166.68(W) ×238.8(H) ×4.8(T) |
|
|
LCM ModuleOutline |
143.06 (W) ×228.56 (H) ×2.60 (T) |
mm |
|
LCD AA |
135.36（W）×216.58（H） |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
OTA7290B-C |
- |
|
LCD Interface |
MIPI |
-- |
|
Luminance |
300 |
nits |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Capacitive touch |
|
|
Touch IC |
ILI2511 |
-- |
|
Touch point |
Multi-point(10point) |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
USB(ILI2511) |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
