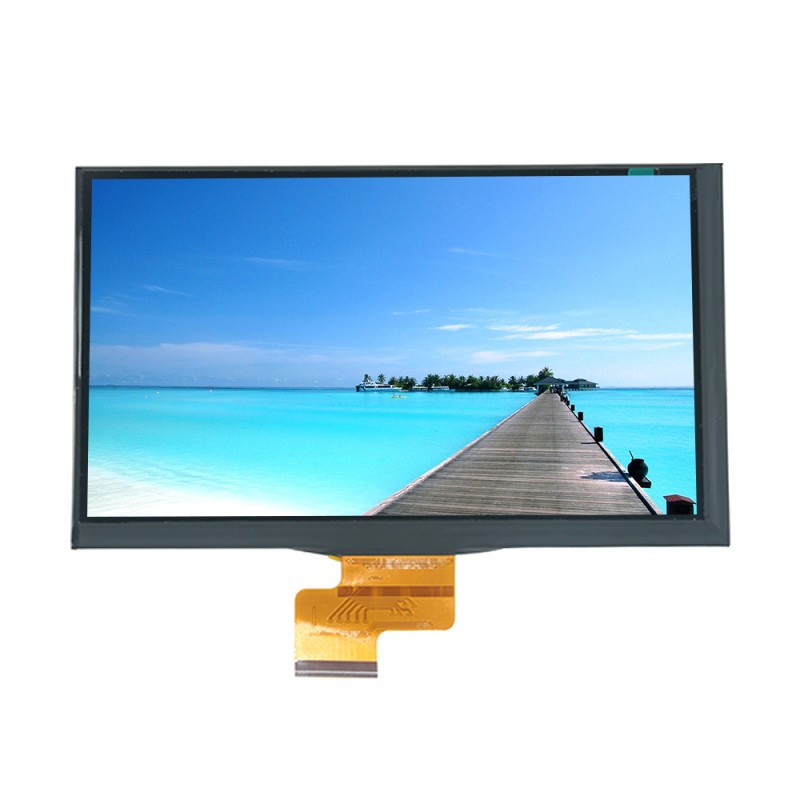

7 inch 1024x600 full view TFT LCD display landscape
7.0inch lcd display screen normally black 1024xRGBx600 resolution with MIPI/RGB interface LCD display landscape for tablet PC
Product advantages:Full View angle, high brightness display
LCM Model: R70071-1024600MZ
LCD Size:7.0inch
LCD Resolution:1024x600
DriverIC:EK79007AD+EK73217BCGA
LCM Interface:MIPI
LCM OD: 163.70（W)*96.9（H)*2.59(T)
LCD AA:154.21(W)*85.92(H)
Display view angle: IPS
Display brightness:300/500nits
|
Item |
Specification |
Unit |
|
LCD screen size |
7.0 |
inch |
|
Display Mode |
NormallyBlack |
-- |
|
Resolution |
1024(RGB)x600 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
ALL (IPS) |
- |
|
Module outline dimension |
163.70(W)*96.9（H)*2.59(T) |
mm |
|
LCD AA |
154.21(W)*85.92（H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
EK79007+EK73217 |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
300(TPY) |
cd/㎡ |
|
Backlight Arrangement |
White LED（3S8P） |
-- |
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
- |
-- |
|
Cover lensColors |
- |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
7inch lcd display module dimension mipiinterface：
