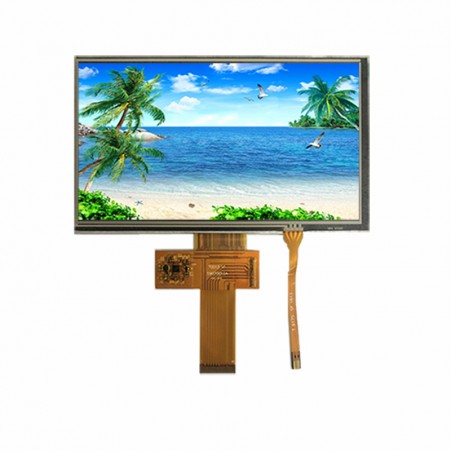

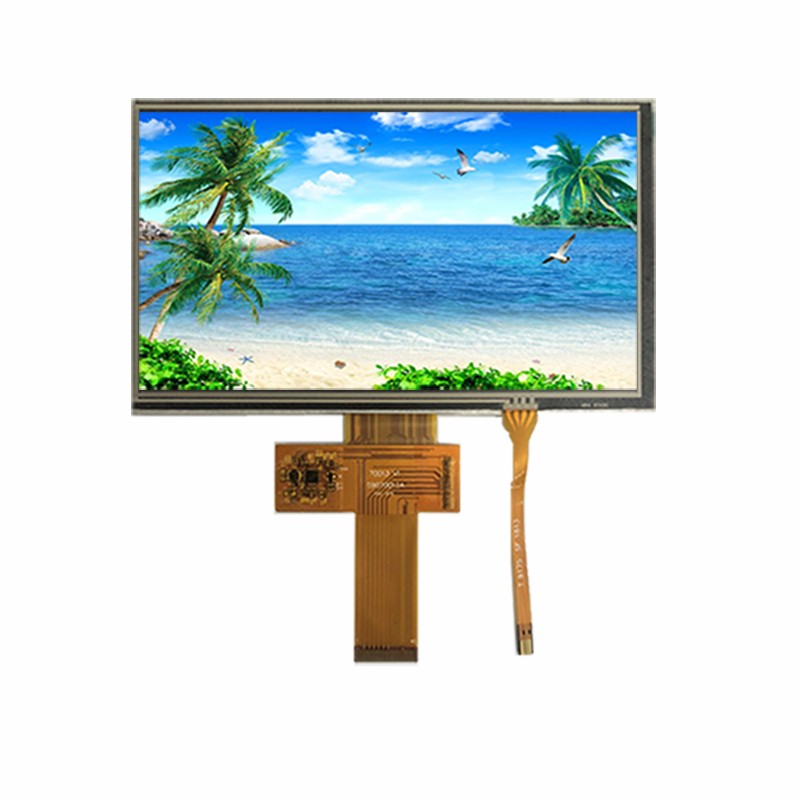

8.0 inch RGB interface WVGA with touch screen Landscape TFT LCD
8.0 inch LCD normally white 800*RGB*480 dots, WVGA with touch screen LCD display landscape for audio system
Product advantages: industrial grade quality display module,no MOQ,long time supply
LCM Model: R80002-800480RZ-TP
LCD Size:8.0inch
LCD Resolution:800x480
LCM Interface:RGB
Display view angle: 6o'clock
Display brightness:300nits
Touch Screen:Resistivetouch
|
Item |
Specification |
Unit |
|
LCD screen size |
8.0 |
inch |
|
Display Mode |
Normallywhite |
-- |
|
Resolution |
800x(RGB)x480 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
6 o’clock |
- |
|
LCM module outline |
192.8（H)*116.9(V)*6.4(T) |
mm |
|
LCD AA |
176.64 (H) x99.36 (V) |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
/ |
- |
|
LCD Interface |
24bit RGB |
-- |
|
Luminance |
500(TPY) |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Touch Screen |
Resistive Touch Screen |
|
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
- |
-- |
|
Cover lensColors |
- |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
