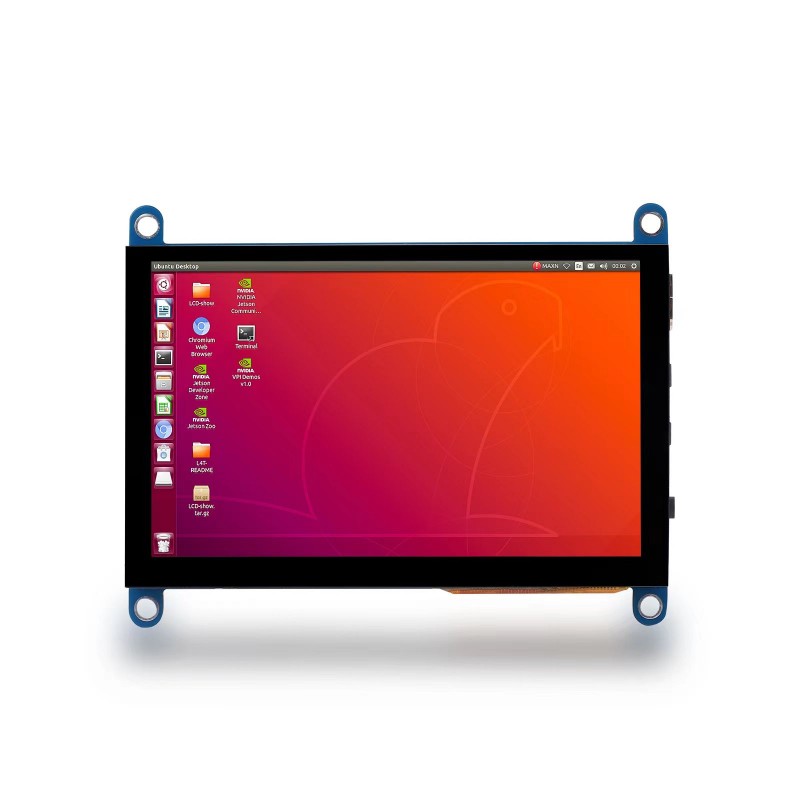

HDMI Display Module R5001RT TP touch screen
R5001RT-TP-HDMI has the following features:
1. The 5inch display has the advantages of high color gamut, pure chromaticity and long color life.
2. The hardware resolution is 800×480, and the resolution can be configured by software up to 1920×1080.
3. 5-point capacitive touch control, tempered glass capacitive touch panel.
4. Supports Raspberry Pi OS/ Ubuntu / Kali and Retropie, Windows.
5. Ubuntu is supported when used with Jetson Nano.
6. When used as a computer monitor, supports Windows 11/10/8.1/8/7.
7. Support mainstream game consoles, such as MicrosoftXbox360, Sony PS4, Nintendo SWITCH, etc.
8. Support Chinese and English OSD menu (usedfor power control, adjust brightness, contrast, volume, etc.)
9. With 3.5mm audio interface, support HDMI audio output.
R5001RT-TP is a general purpose 5inch HDMI display with a resolution of 800×480 and a capacitive touch panel.
Can be used as a computer monitor
Item |
Contents |
remarks |
Display Interface |
HDMI 1.1 |
type A HDMI |
Touch Interface |
USB 1.1 |
Micro USB |
Touch points |
5 points |
- |
Display Size (Diagonal) |
5.0 |
inch |
Display Resolution |
800RGB×480 |
pixel |
Display Type |
TFT/IPS |
- |
Audio power amplifier |
3watt |
Note1 |
Module size (W ×H) |
121.32×94.89 |
mm |
Module Weight |
122 |
gram |
Materials |
ROHS Compliant |
- |
