10.1 Inch LCD Touch Screen Monitor 1920x1200, 1000 Nits, LVDS, IPS

A high-brightness 10.1 inch LCD touch screen monitor for industrial, navigation and smart home interfaces

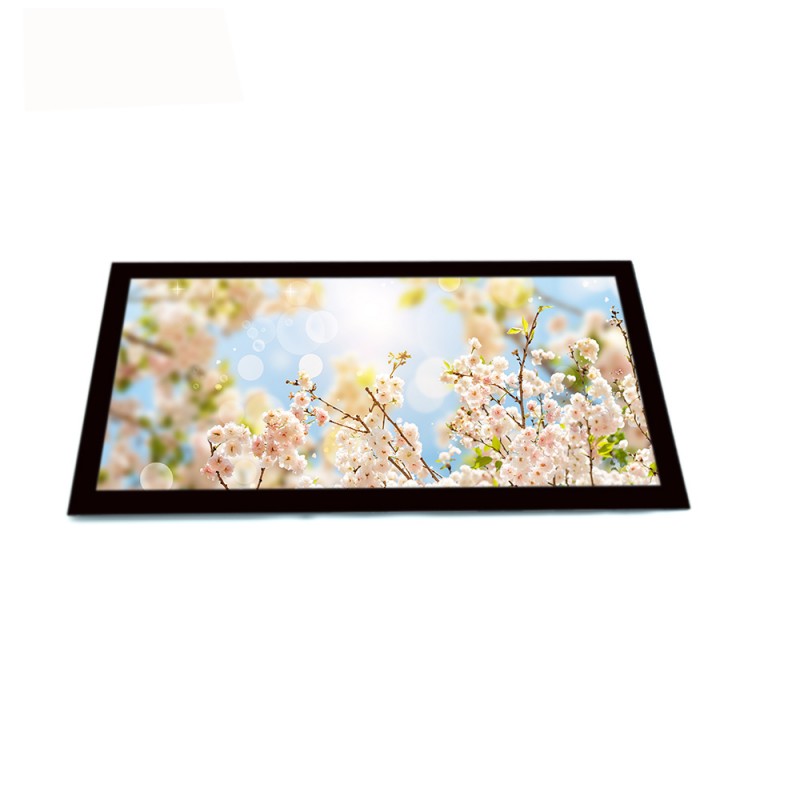

The R101001-19201200LT is a 10.1 inch LCD touch screen monitor with 1920x1200 resolution, LVDS interface and IPS full-view technology, designed for industrial tablets, navigation systems, smart home panels and medical equipment. With brightness up to 1000 nits, normally black mode and optional capacitive touch, this display can be configured as a complete touch panel display with custom cover lens and interface to match different product requirements.

Why this 10.1 inch LCD touch screen monitor matters

In industrial control, navigation and smart home systems, screens must remain readable under strong ambient light while supporting multi-window and data-rich interfaces. The 10.1 inch LCD touch screen monitor combines Full HD+ resolution, high brightness and wide viewing angle in a standard 10.1 inch form factor.

• 1920x1200 resolution on a 10.1 inch diagonal provides clear text, curves and multi-window layouts.
• Up to 1000 nits high brightness supports use in bright indoor, window-side and semi-outdoor environments.
• IPS full-view technology ensures consistent color and contrast from multiple viewing angles.
• LVDS interface enables stable, noise-resistant transmission in electrically noisy industrial and automotive setups.

How the LVDS interface and touch panel display work

LVDS (Low Voltage Differential Signaling) is a stable, noise-resistant interface widely used in industrial, automotive and medical displays. It allows reliable transmission over longer distances inside a cabinet or vehicle, compared with simple MCU/SPI interfaces.

• LVDS interface reduces signal interference in electrically noisy environments such as control cabinets and vehicles.
• Optional capacitive touch turns the LCD module into a complete touch panel display for interactive operation.
• Normally black mode improves perceived contrast and reduces light leakage in dark UI themes.

What to check before buying a 10.1 inch LCD touch screen

When selecting a 10.1 inch display for a project, the key parameters are resolution, brightness, interface, mechanical fit and touch requirements.

• Confirm the available installation space against the module outline (228.5 × 149 × 4.55 mm) and active area (216.81 × 135.5 mm).
• Match the LVDS interface and pin definition with your mainboard; custom cable length and connector can be arranged.
• Decide if you need a bare module or a solution with capacitive touch panel and cover lens already bonded.
• Check the operating temperature range (-20°C ~ +70°C) against your target application environment.

Key specifications of the 10.1 inch LCD touch screen monitor

Customization options for 10.1 inch LCD projects

RONDELI supports OEM and ODM customization on this 10.1 inch LCD touch screen monitor to help customers integrate the display into their own industrial, automotive and smart devices.

• Touch panel: optional capacitive touch with IIC interface; cover lens thickness and shape can be adjusted.
• Interface: LVDS pin definition, cable length and connector type can be tuned to match customer mainboard.
• Branding: custom logo on cover lens or flexible cable for private-label devices.
• Testing: additional reliability tests (temperature cycling, vibration, ESD) can be arranged according to project requirements.

For deep customization (different outline, special optical bonding, unique brightness level or driver IC), RONDELI can evaluate feasibility based on target quantity and development timeline.

Typical applications of the 10.1 inch LCD touch screen monitor

This high-brightness 10.1 inch LCD module is suitable for data-rich interfaces in industrial, automotive and smart environments.

• Industrial control: HMI panels, industrial tablets, machine control consoles and monitoring stations.
• Automotive and navigation: navigation systems, GPS displays, fleet management and in-vehicle information terminals.
• Smart home and retail: home automation panels, retail kiosks, vending machines and advertising displays.
• Medical and consumer equipment: medical monitors, POS terminals, education devices and other consumer electronics requiring a reliable touch panel display.

Case example: touch panel display for an industrial tablet

An industrial automation company was developing a new tablet-style HMI for factory floor use.

Buyer Requirement: The buyer needed a 10.1 inch display with at least 1920x1200 resolution, high brightness for bright indoor areas, and stable operation from -20°C to +70°C.

Solution: RONDELI recommended the R101001-19201200LT 10.1 inch LCD touch screen monitor with 1920x1200 resolution, 1000 nits brightness and LVDS interface. A custom capacitive touch panel and glass cover lens with logo printing were added to create a complete touch panel display.

Result: The final module provided clear multi-window operation, reliable touch response in noisy electrical environments, and passed the customer's vibration and temperature tests for mass production.

Frequently asked questions about this 10.1 inch LCD touch screen monitor

Q1: What is the resolution of this 10.1 inch LCD touch screen monitor?

The display has a 1920 × (RGB) × 1200 resolution, which is suitable for data-rich HMI, navigation and multi-window interfaces on a 10.1 inch diagonal.

Q2: Can this 10.1 inch LCD work with my existing LVDS board?

In most cases, yes. RONDELI can adjust LVDS pin definition, cable length and connector type to match your mainboard. Please share your board requirements for confirmation.

Q3: Is capacitive touch available for this 10.1 inch LCD module?

Yes, an optional capacitive touch panel with IIC interface and glass–glass structure is available. Cover lens thickness, hardness and surface treatment can be customized to form a complete touch panel display.

Q4: What is the typical lead time for samples and mass production?

Sample lead time is usually around 2–3 weeks, depending on configuration. Mass production lead time is negotiated based on order quantity and customization level.

Q5: Can RONDELI support small MOQ for pilot projects?

Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.

About RONDELI Display

RONDELI Display is a manufacturer of TFT LCD modules, touch panel displays and high-brightness screens for industrial, automotive and smart device applications. The company follows ISO 9001:2015 and IATF16949:2016 quality standards, and its LCD products comply with RoHS and REACH requirements. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.

Request a quote for the 10.1 inch LCD touch screen monitor

For OEM inquiries on this 10.1 inch LCD touch screen monitor, providing the following details helps speed up the quotation process:

• Target application (industrial tablet, navigation, smart home, medical equipment, etc.)
• Required brightness and touch configuration (with or without cover lens)
• Interface and connector requirements (LVDS pin definition, cable length)
• Estimated annual quantity and any custom branding or packaging needs

Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2–3 weeks.
