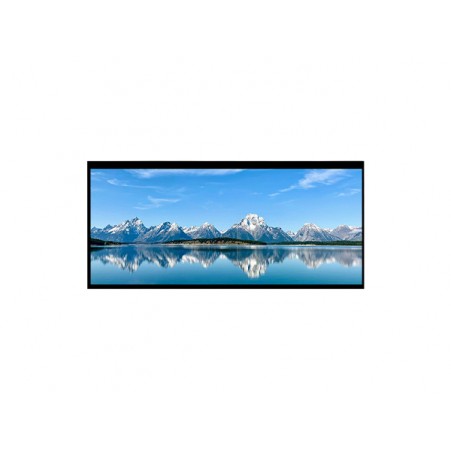

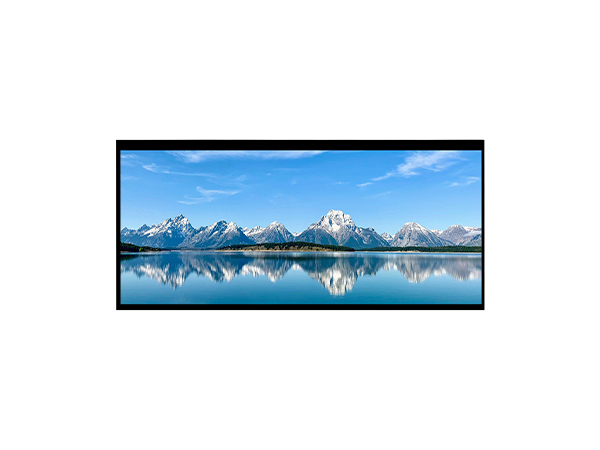

12.3inch 1920*720 1000nits lcd module 2port channel LVDS IPS incell touch screen for carplay
12.3inch liquid crystal module normally Black 1920xRGBx720LVDS interface customized lcd for navigation systems GPS carplay

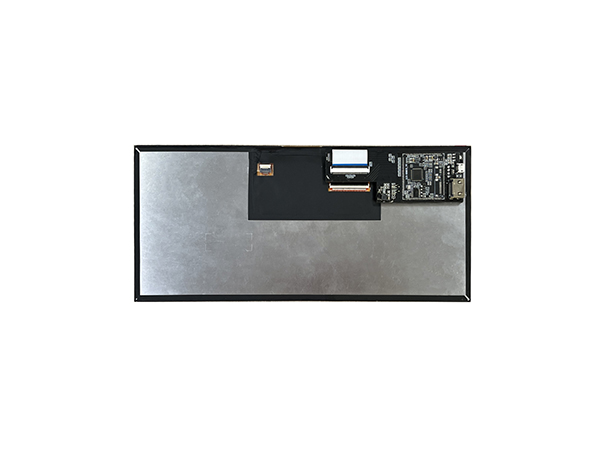

This product is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with LTPS Process . This model is composed by TFT-LCD, drive IC (touch function generated) ,FPC(flexible printed circuit) and backlight unit.
12.3” TFT LCM with in-cell
36 LEDs Backlight System
Supported HD+ (1920×720 pixels) resolution
Product advantages:high quality tft lcd,high brightness lcd module touch panel HDMI
LCM Model:R123001-1920720LT
LCD Size:12.3inch
LCDPixels:1920x720
LCM Interface:LVDS
Display view angle:IPS
DisplayLuminance:1000nits
Touch Screen:optional capacitive touch
12.3inch tft lcd display 1920x720 high quality lcd tft parameters:
|
No. |
Item |
Specification |
Unit |
Note |
|
1 |
LCD size |
12.3 |
inch |
|
|
2 |
Resolution |
1920RGB×720 |
|
|
|
3 |
Pixel Arrangement |
RGB |
|
|
|
4 |
Model Type |
LCM |
|
|
|
5 |
TFT Technology |
FFS |
|
|
|
6 |
Touch Technology |
In-cell |
|
Generated in driver IC |
|
7 |
Display mode |
Normally Black |
-- |
|
|
8 |
Active Area |
292.032×109.512 |
mm |
|
|
9 |
Dot pitch |
0.1521×0.1521 |
mm |
|
|
10 |
Display Colors |
16.7M |
bits |
|
|
11 |
NTSC |
70%(Min.),75%(typ.) |
|
CIE 1931 |
|
12 |
LCM Outline Dimension |
299.5×123×5.92 |
mm |
According to drawing |
|
13 |
Interface |
2-PORT-LVDS (VESA) |
|
|
|
14 |
Driver IC |
FT7251 |
|
|
|
15 |
Method of Inversion |
Column Inversion |
|
|
|
16 |
Weight |
（282） |
g |
±5g |
|
17 |
Multi-Touch |
≥5 point |
|
|
|
18 |
Touch Accuracy |
Center≤±1 , Edge ≤±2.0 |
mm |
@8mm Copper Pillar |
|
19 |
Touch Linearity |
Center≤±1 , Edge ≤±2.0 |
mm |
@8mm Copper Pillar |
|
20 |
Jitter |
fixed touch input ±1mm , touch input ±1.5mm |
mm |
|
|
21 |
Report rate |
60Hz, Up to≥120Hz |
|
|
|
22 |
Finger separation |
15 mm(x-y axis)，18mm(diagonal) |
mm |
|
|
23 |
Anti-Water |
Support |
|
|
|
24 |
Glove Support |
PMMA/Leather<3mm， ≤2 point |
|
|
