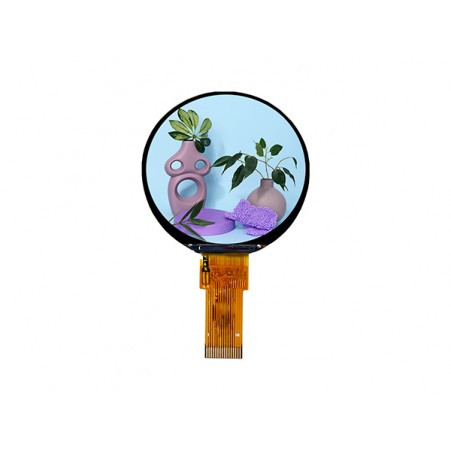

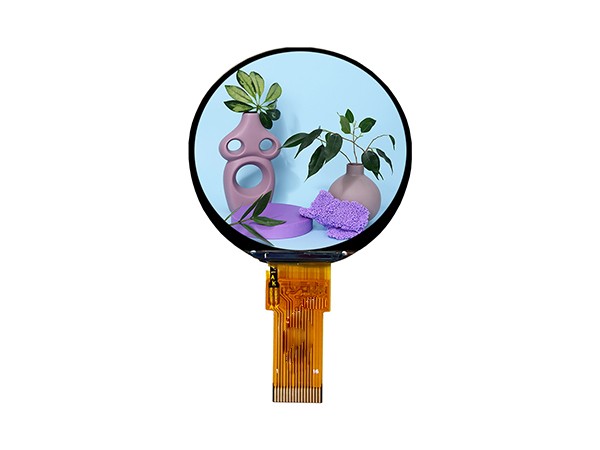

1.46inch round TFT LCD normally Black 360xRGBx360
SPIinterfacelcd display for smart home
Product advantages:Round lcddisplay touch panel
LCM Model:R14601-360360SZ
LCD Size:1.46inch
LCD AA:36.94x36.94
LCD Resolution:360x360
LCD Interface:SPI
Display view angle:IPS
DisplayLuminance:300nits
Touch Screen:optional capacitive touch
1.46inch LCD module 360x360 round tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
1.46 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
360x(RGB)x360 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-ModuleOutline |
/ |
|
|
LCM ModuleOutline |
39.3 (W) ×40.96 (H) ×1.6 (T) |
mm |
|
LCD AA |
36.94（W）×36.94（H） |
mm |
|
DisplayColors |
65k/262k |
colors |
|
Driver IC |
ST77916 |
- |
|
LCDInterface |
4Line SPI |
-- |
|
Luminance |
300 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option PCAP |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
