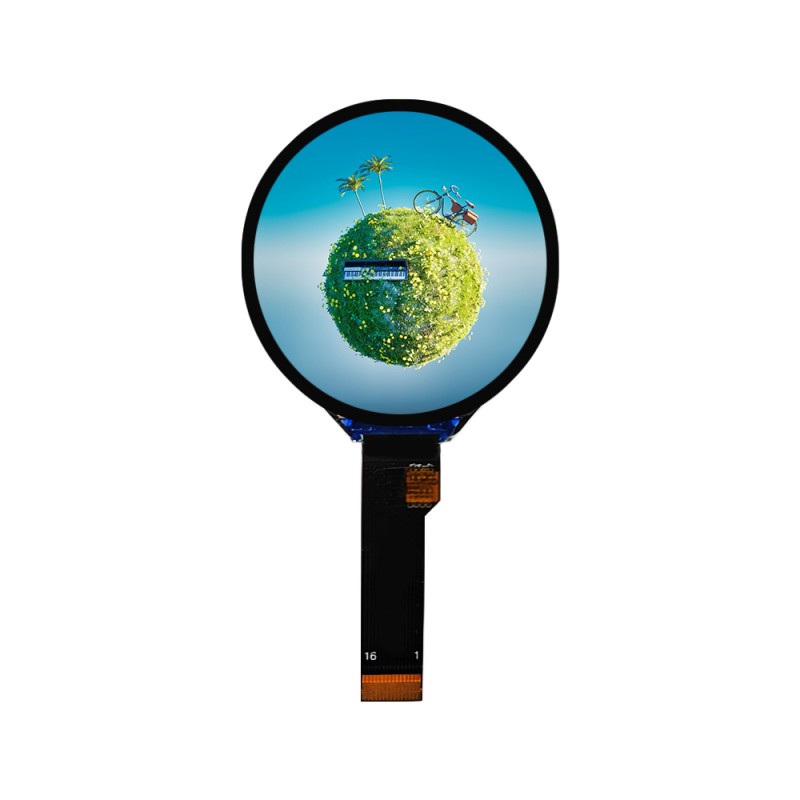

1.6inch 400*400 round lcd display spi mipi IPS lcd module
1.6inch tft LCD normally Black 400xRGBx400 QSPI interface lcd display for smart rotary knob switch
Product advantages: High definition,Round tft display,Circular lcd screen
LCM Model:16002-400400SW
LCD Size:1.6inch
LCD Resolution:400x400
LCM Interface:QSPI/MIPI
LCM OD:42.94x45.87x2.15
LCD AA:39.84×39.84
Display view angle:IPS
DisplayLuminance:300nits
Touch Screen:optional capacitive touch
1.6inch LCD module 400x400 circular display screen parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
1.6 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
400x(RGB)x400 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
42.94(W) ×45.87(H) ×2.15(T) |
mm |
|
LCD AA |
39.84(W)×39.84（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST77903 |
- |
|
LCDInterface |
QSPI |
-- |
|
Luminance |
300 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option PCAP |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
glass |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
