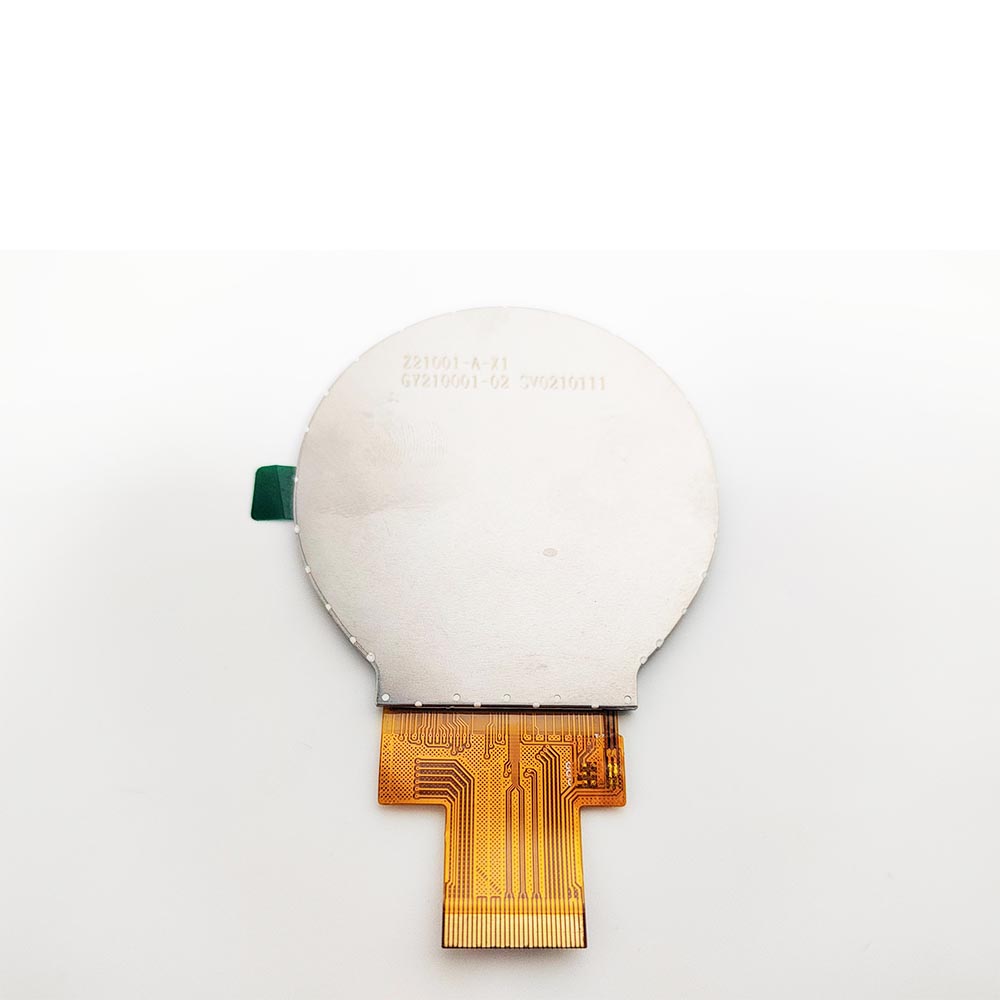

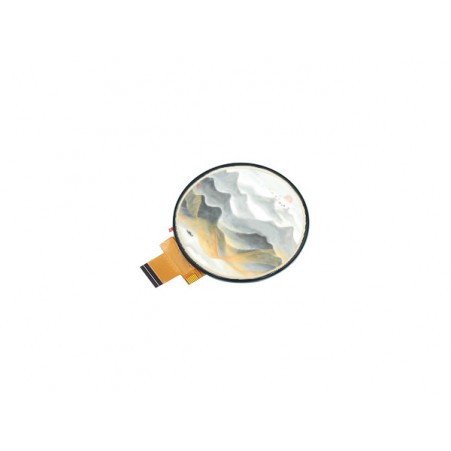

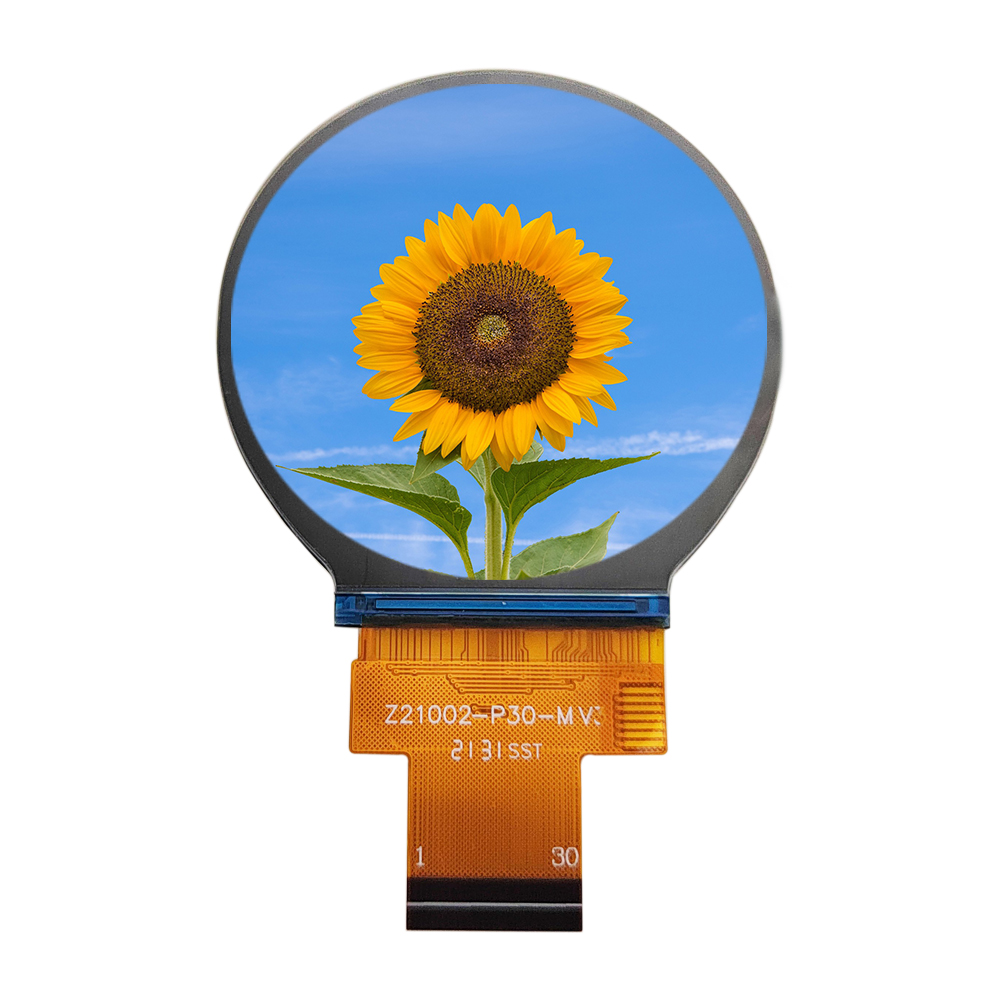

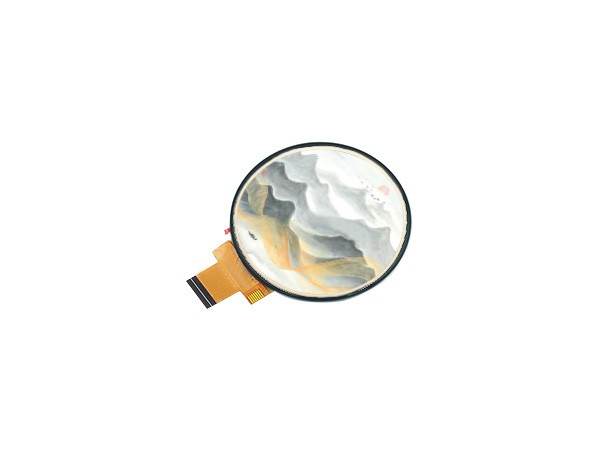

2.1inch tft lcd normally black 480xRGBx480 resolution mipi interface lcd display module for LOT/intelligent switch panel/medical instument
Product advantages: Full view, high brightnesslcd display
LCM Model:R21002-480480MZ
LCD Size:2.1inch
LCD Resolution:480x480
DriverIC:ST7701S
LCM Interface:mipi
LCM OD:56.18x59.71
LCD AA:53.28x53.28
Display view angle: IPS
Display brightness:500 nits
Touch Screen: with or without touch
2.1inch 480x480 tft lcd module parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
2.1 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
480x(RGB)x480 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full View(IPS) |
- |
|
Module outline dimension |
56.18 (W) ×59.71 (H) ×2.3 (T) |
mm |
|
LCD AA |
53.28（W）×53.28（H） |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
ST7701S |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
500 |
cd/㎡ |
|
Backlight Arrangement |
White LED（1S4P） |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
2.1inch lcd panel dimension MIPI interface：
