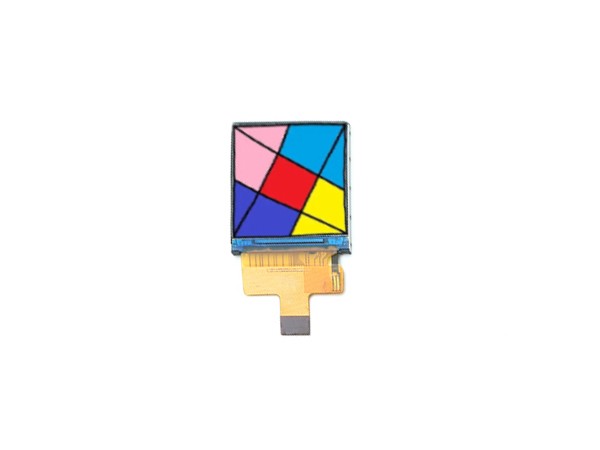

1.3inch 240*240 SPI IPS square lcd screen replacement
1.3inch LCD normally black 240xRGBx240 pixel with SPI interface lcd display module for LOT/intelligent switch panel/medical instument
Product advantages:IPS, high brightnesslcd display
LCM Model:R13005-240240SZ
LCD Size:1.3inch
LCD Resolution:240x240
DriverIC:ST7789V2-G4
LCM Interface:4Line-SPI
LCM OD:26.17x29.22
LCD AA:23.4x23.4
Display view angle: IPS
Display brightness:350/500 nits
Touch Screen: with or without touch
1.3inch square LCD 240x240 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
1.3 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
240x(RGB)x240 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full View(IPS) |
- |
|
Module outline dimension |
26.17 (W) ×29.22 (H) ×1.5 (T) |
mm |
|
LCD AA |
23.4（W）×23.4（H） |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
ST7789V2-G4-A |
- |
|
LCD Interface |
4Line-SPI |
-- |
|
Luminance |
350 |
cd/㎡ |
|
Backlight Arrangement |
White LED（1S2P） |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
1.3inch tft lcd panel dimension SPI interface：
