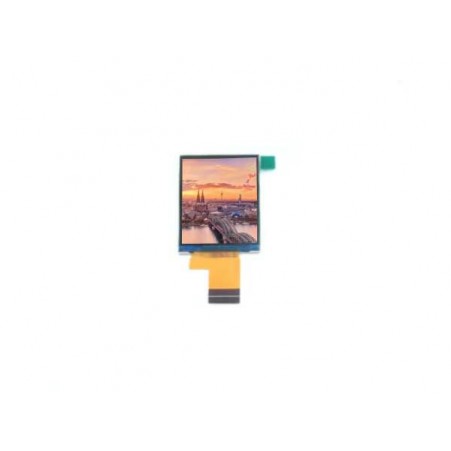

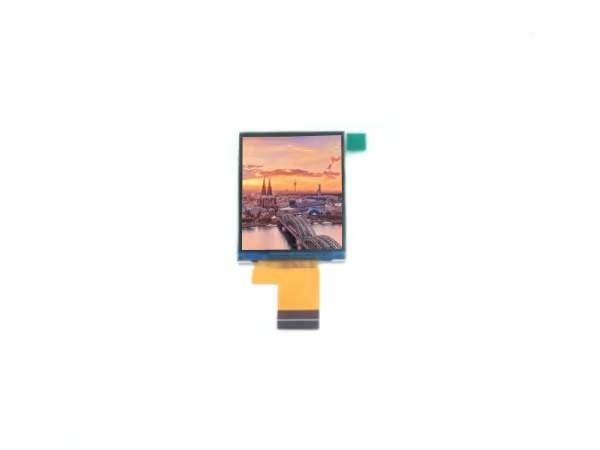

2.4inch 240*320 350nits MCU SPI tft lcd module for medical instrument
2.4inch normally black 240xRGBx320 resolution with MCU interface lcd display module for LOT/intelligent switch panel/medical instument
Product advantages:wide viewing angle,high brightnesslcd display
LCM Model:R24017-240320UZ
LCD Size:2.4inch
LCD Resolution:240x320
DriverIC:GC9306N/ST7789V2
LCM Interface:80-MCU 8bit/16bit
LCD AA:36.72（W)x48.76(H）
Display view angle:12 o’clock
Display brightness:350nits
Touch Screen: with or without touch
Our LCD module delivers exceptional performance, ensuring accurate and precise readings for medical applications. Its advanced MCU technology guarantees smooth and efficient operation, while the compact size allows seamless integration. Stay ahead in the medical industry with our 2.4inch 240*320 350nits MCU tft lcd module, designed to enhance your instrument's functionality.
2.4inch LCD 240x320 tft lcd module parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
2.4 |
inch |
|
Display Mode |
Normally White |
-- |
|
Resolution |
240x(RGB)x320 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
12 o'clock |
- |
|
Module outline dimension |
40.52 (W) ×57 (H) ×2.4 (T) |
mm |
|
LCD AA |
36.72（W）×48.76（H） |
mm |
|
Display Colors |
262k |
colors |
|
Driver IC |
GC9306N/ST7789V2 |
- |
|
LCD Interface |
MCU |
-- |
|
Luminance |
350 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
option |
|
|
Touch IC |
- |
-- |
|
Touch point |
- |
-- |
|
Touch structure |
- |
-- |
|
Touch Interface |
- |
-- |
|
Cover lens |
- |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
TBD |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
2.4inch tft lcd panel dimension MCU interface：
