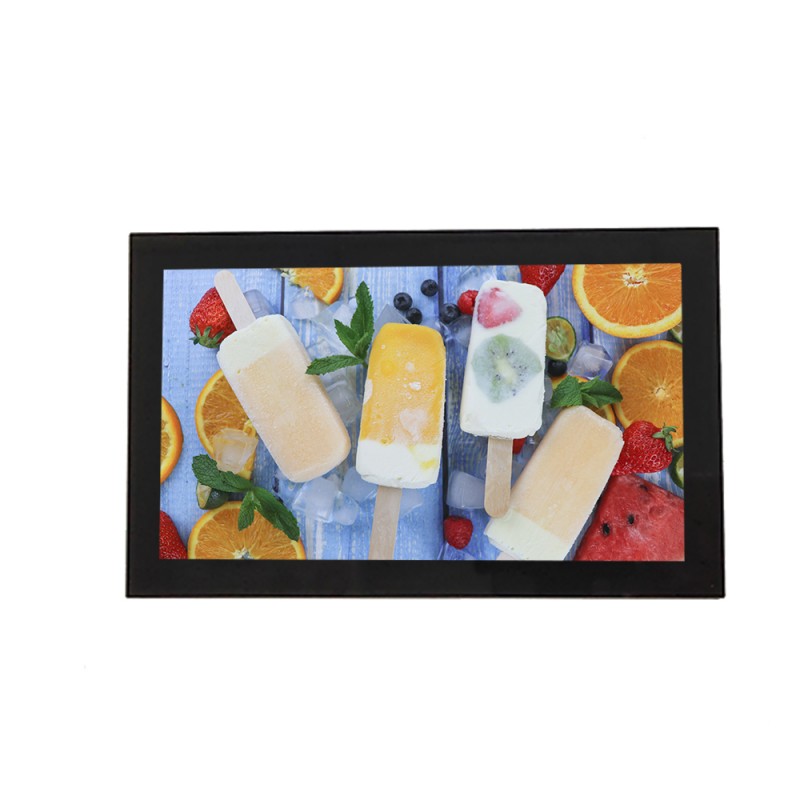

8.0 inch LCD display normally balck 800xRGBx1280 resolution with mipi interfacelcd display module for personal digital assistant
Product advantages: Full View angle, high brightness, Landscape
LCM Model:R80015-8001280MZ
LCD Size:8.0inch
LCD Resolution:800x1280
LCD Interface:MIPI
LCM OD:114.60(W)x184.10(H)x2.7(T)
LCD AA:107.64(W)x172.22(H)
Display view angle:Full view
Display brightness:500nits
Touch Screen:capacitive touch panel
8.0 inch LCD module 800x1280 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
8.0 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
800x(RGB)x1280 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Normally Black |
- |
|
Module outline dimension |
114.60 (W) ×184.10 (H) ×2.7 (T) |
mm |
|
LCD AA |
107.64(W)×172.22(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
- |
- |
|
LCDInterface |
MIPI |
-- |
|
Luminance |
500 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Capacitive touch |
|
|
Touch IC |
GT911 |
-- |
|
Touch point |
5finger point |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
White/Black |
-- |
|
Weight (LCM/TP+LCM) |
0.03 |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
