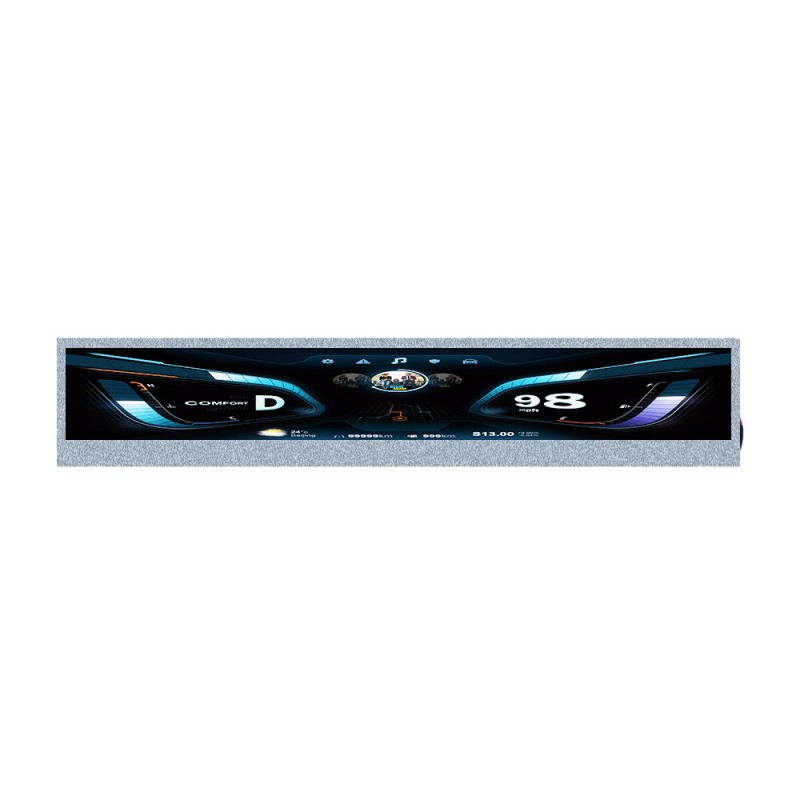

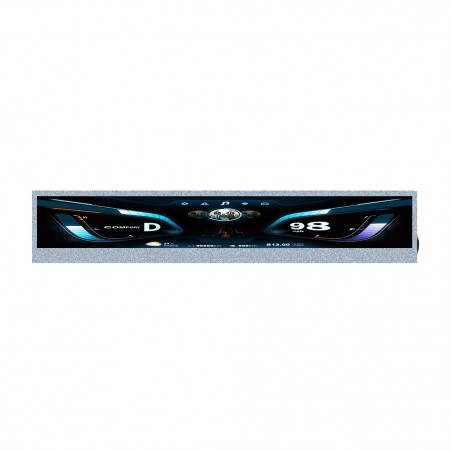

9.0 inch 1024*105 lcd module 1000nits RGB tft lcd display
9.0 inch LCD normally white 1024xRGBx105 with RGB interface lcd display module for pilot product
Product advantages: high brightness lcd display,Landscape
LCM Model: R90001-1024105RZ
LCD Size: 9.0inch
LCD Resolution: 1024x105
DriverIC: HX8282
LCM Interface: RGB
LCD AA: 230.4×23.62
Display view angle: 12 o'clock
Display brightness: 1000nits
Touch Screen: Optional capacitive touch
1.General Specification
|
Item |
Specification |
Unit |
|
LCD screensize |
9.0 |
inch |
|
Display Mode |
Normally White |
-- |
|
Resolution |
1024x(RGB)x105 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
12 o'clock |
- |
|
LCM Module Outline |
240.08 (W) ×37.8 (H) ×4.3 (T) |
mm |
|
LCD AA |
230.4(W)×23.62(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
HX8282 |
- |
|
LCDInterface |
RGB |
-- |
|
Luminance |
1000 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Option |
|
|
Touch IC |
/ |
-- |
|
Touch point |
/ |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
