12.3 Inch Bar LCD Module 1920*720 1000 Nits LVDS IPS TFT LCD Modules

A high-brightness 12.3 inch bar LCD module for navigation, GPS and industrial displays

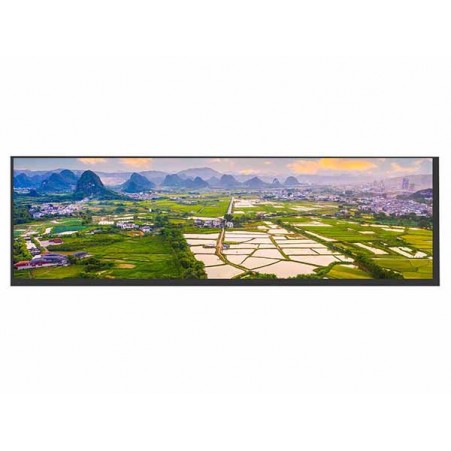

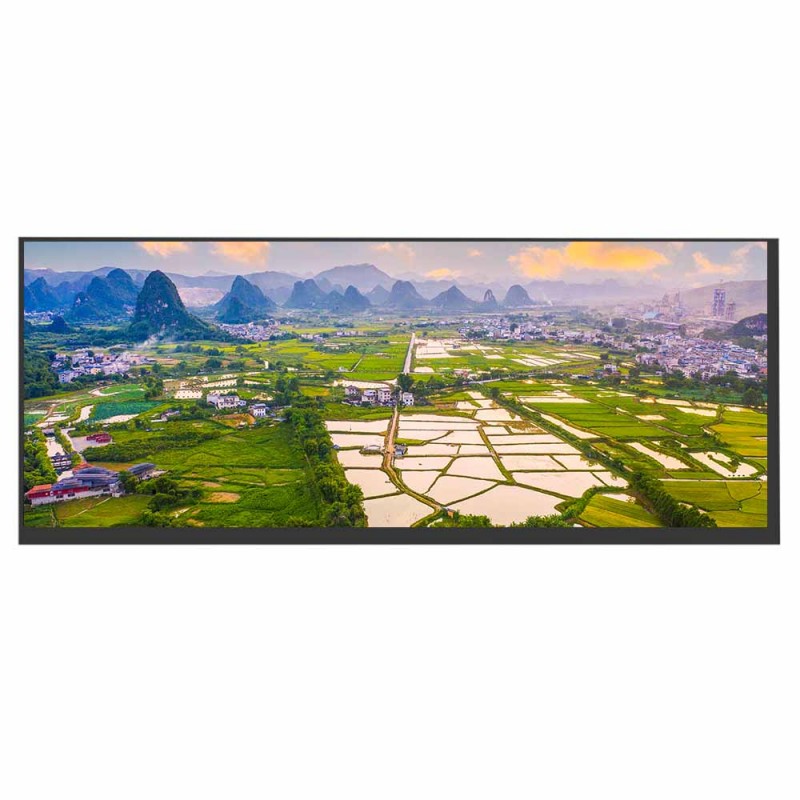

The R123003-1920720LH is a 12.3 inch bar LCD module with 1920x720 resolution, LVDS interface and IPS technology, designed for navigation systems, GPS devices and industrial bar displays. With a 400-1000 nits brightness range and optional capacitive touch, this bar type LCD display supports custom brightness, interface and cover lens to match different automotive and industrial requirements.

Why this 12.3 inch bar LCD module matters

Bar-shaped screens fit long, narrow installation spaces in vehicles, control panels and public information systems. This 12.3 inch bar LCD module combines a 1920x720 resolution with a flexible 400-1000 nits brightness range, so it can be configured for both standard indoor use and high-brightness automotive or outdoor environments.

• 1920x720 resolution on a 12.3 inch bar format gives clear text and graphics for navigation and instrument UI.
• 400-1000 nits brightness range allows configuration for indoor, semi-outdoor and direct sunlight conditions.
• IPS technology provides wide viewing angles for multi-position viewing in vehicles and control rooms.
• LVDS interface ensures stable signal transmission in electrically noisy environments.

How the LVDS interface and IPS panel work

LVDS (Low Voltage Differential Signaling) is a stable, noise-resistant interface widely used in automotive and industrial LCDs. It allows reliable transmission over longer distances inside a vehicle or cabinet, compared with simple MCU/SPI interfaces.

• LVDS interface reduces signal interference in engine bays, power cabinets and other noisy environments.
• IPS panel structure ensures consistent color and contrast when viewed from different angles.
• Normally black mode improves perceived contrast and reduces light leakage in dark environments.

What to check before buying a 12.3 inch bar LCD module

When selecting a bar LCD for a project, the key parameters are size, resolution, brightness range, interface and mechanical fit.

• Confirm the available installation space against the module outline (321.6 × 138.8 × 6.15 mm) and active area (292.032 × 109.512 mm).
• Match the LVDS interface with your mainboard or driver board; custom cable length and connector type can be arranged.
• Decide the target brightness level within the 400-1000 nits range based on ambient light conditions.
• Check whether you need a bare module or a solution with capacitive touch and cover lens already bonded.

Key specifications of the 12.3 inch bar LCD module

Customization options for 12.3 inch bar LCD projects

RONDELI supports OEM and ODM customization on this 12.3 inch bar LCD module to help customers integrate the display into their own navigation, GPS and industrial products.

• Brightness: configurable within the 400-1000 nits range to match application environment.
• Interface: LVDS pin definition, cable length and connector type can be adjusted to match customer mainboard.
• Touch panel: optional capacitive touch with IIC interface; cover lens thickness and shape can be customized.
• Branding: custom logo on cover lens, flexible cable or packaging for private-label projects.
• Testing: additional reliability tests (high/low temperature, vibration, ESD) can be arranged according to project requirements.

For deep customization (different outline, special optical bonding, unique driver IC), RONDELI can evaluate feasibility based on target quantity and development timeline.

Typical applications of the 12.3 inch bar LCD module

This bar type LCD display is suitable for long, narrow installation spaces in automotive, industrial and public information systems.

• Automotive: digital instrument clusters, center console displays, navigation and GPS information bars.
• Industrial control: HMI panels, machine status bars, control room monitoring strips.
• Public information: wayfinding displays, queue information bars, transportation station signage.
• Medical and specialty equipment: long-format monitoring screens on medical carts and diagnostic devices.

Case example: navigation display for an automotive electronics supplier

An automotive electronics supplier needed a long-format display for a new navigation and GPS information system.

Buyer Requirement: The buyer required a 12-13 inch bar display with 1920x720 resolution, configurable brightness for both day and night driving, and stable LVDS connectivity.

Solution: RONDELI recommended the R123003-1920720LH 12.3 inch bar LCD module with 400-1000 nits brightness range and LVDS interface. A custom cover lens with printed logo was added to match the customer's mechanical design and branding.

Result: The final module fit the dashboard cut-out precisely, maintained good visibility across different lighting conditions, and passed the customer's temperature cycling and vibration tests for in-vehicle use.

Frequently asked questions about this 12.3 inch bar LCD module

Q1: What is the brightness range of this 12.3 inch bar LCD module?

The brightness is configurable from 400 to 1000 nits, allowing you to choose the right level for indoor, semi-outdoor or direct sunlight applications.

Q2: Can this bar type LCD display work with my existing LVDS board?

In most cases, yes. RONDELI can adjust LVDS pin definition, cable length and connector type to match your mainboard. Please share your board requirements for confirmation.

Q3: Is touch panel available for this 12.3 inch bar LCD module?

Yes, an optional capacitive touch panel with IIC interface and glass-glass structure can be added. Cover lens thickness and surface hardness can be customized.

Q4: What makes this different from the In-cell touch version?

This version uses a standard LVDS interface with optional external capacitive touch, offering more flexibility for customers who already have a touch solution or prefer a separate touch layer. The In-cell version integrates touch directly into the LCD for a thinner profile.

Q5: Can RONDELI support small MOQ for pilot projects?

Yes, RONDELI can support pilot orders for evaluation. Target MOQ and pricing will depend on the chosen configuration and any custom requirements.

About RONDELI Display

RONDELI Display is a manufacturer of TFT LCD modules, bar type LCD displays and touch solutions for automotive, industrial and smart equipment applications. The company focuses on long-term supply, stable quality and engineering support for OEM and ODM projects. Products are shipped to customers in Europe, America, Asia and other regions, with support from initial selection to mass production.

Request a quote for the 12.3 inch bar LCD module

For OEM inquiries on this 12.3 inch bar LCD module, providing the following details helps speed up the quotation process:

• Target application (navigation, GPS, industrial control, public display, etc.)
• Required brightness level within the 400-1000 nits range
• Interface and connector requirements (LVDS pin definition, cable length)
• Whether touch panel and cover lens are needed
• Estimated annual quantity and any custom branding or packaging needs

Samples are available prior to bulk order confirmation, with a typical lead time of approximately 2-3 weeks.
