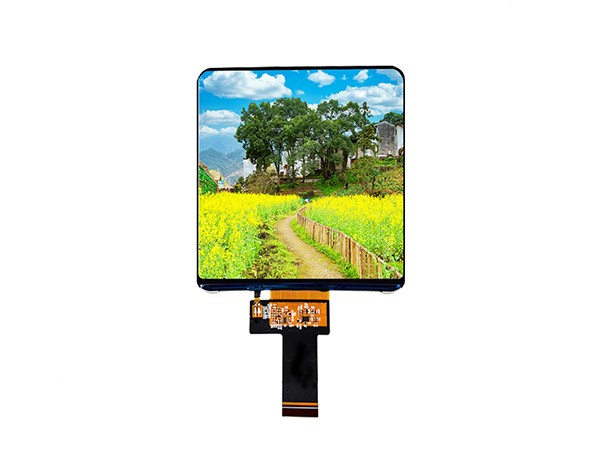

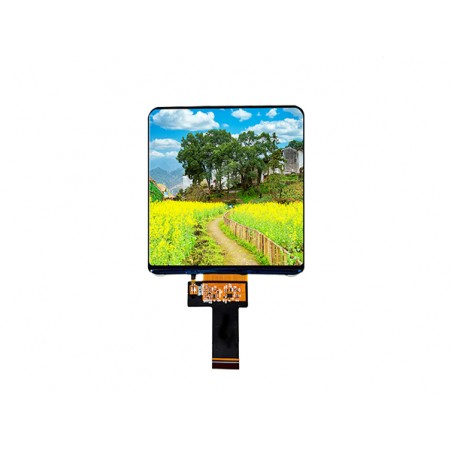

5 Inch 720x720 Resolution In-Cell LCD Square Screen with Built-in Touch Function
High-quality 5 inch square In-Cell LCD screen with 720x720 resolution and built-in touch function. This all-in-one display module offers excellent clarity and responsive touch, ideal for industrial controls, smart devices, and portable electronics
Product advantages: high definition square lcd display
LCM Model:R50008-720720MZ
LCD Size:5.0inch
LCD Resolution:720x720
DriverIC:JD9365
LCM Interface:MIPI
LCM OD:93.67(W)x96.87(H)x2.15(T)
LCD AA:91.37(W)x91.37(H）
Viewing Aangle:Full View
Display brightness:350nits
Touch Screen: with Touch Function
5.0inch square LCD screen 720x720 tft lcd module parameters:
|
Item |
Specification |
Unit |
|
LCD screen size |
5.08inch |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
720x(RGB)x720 |
Pixel |
|
Pixel arrangement |
RGB Vertical Stripe |
|
|
Viewing angle |
Full Viewing (IPS) |
- |
|
TP-Module Outline |
/ |
|
|
LCM Module Outline |
93.67(W) × 96.87(H) × 2. 15 (T) |
mm |
|
LCD AA |
91.37（W）×91.37（H） |
mm |
|
Display Colors |
16.7M |
colors |
|
Driver IC |
JD9365TX (TDDI) |
- |
|
LCD Interface |
RGB |
-- |
|
Luminance |
350 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
Capacitive touch |
|
|
Touch IC |
/ |
-- |
|
Touch point |
Multi-point |
-- |
|
Touch structure |
/ |
-- |
|
Touch Interface |
IIC/I2C |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lens Colors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +80℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +85℃ |
Deg.c |
