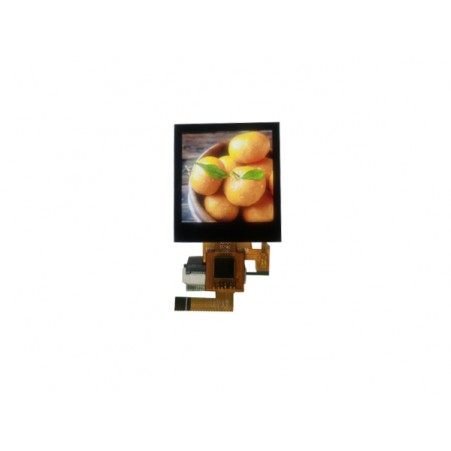

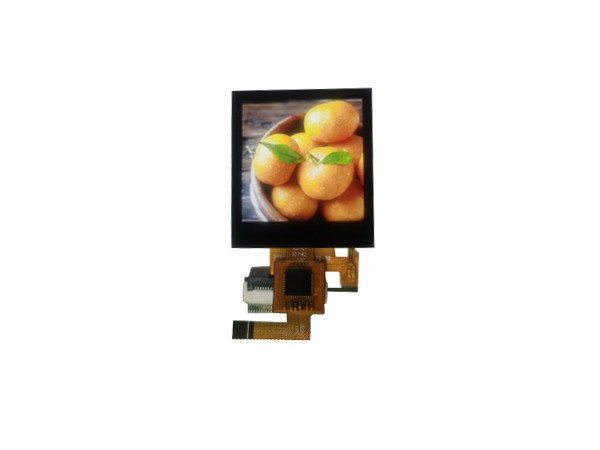

1.3 inch lcd display normally black 240x240 resolution with SPI interface lcd module
Product advantages: full circle display, high brightness display, ultra-thin display.
LCM Model: R13002-240240ST
LCD Size: 1.3 inch
LCD Resolution: 240x240
LCM IC: ST7789V2
LCM Interface:4Line SPI
Touch Screen: with or without touch
Display viewing angle: IPS
Display brightness: 240/350/500nit
LCM OD(mm): 26.2x29.22x1.5
LCD AA(mm): 23.4x23.4
1.3 inch 240x240 TFT square LCD display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
1.3 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
240x(RGB)x240 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewing direction |
Full Viewing(IPS) |
- |
|
Module outline dimension |
26.20x29.22x1.46 |
mm |
|
LCD AA |
23.4(H)*23.4(V) |
mm |
|
DisplayColors |
262k |
colors |
|
Driver IC |
ST7789V2 |
- |
|
LcdInterface |
4LINE-SPI |
-- |
|
Luminance |
240(TPY) |
cd/㎡ |
|
Backlight Arrangement |
White LED（1S2P） |
-- |
|
Touch IC |
-- |
-- |
|
Touch point |
-- |
-- |
|
Touch structure |
-- |
-- |
|
Touch Interface |
-- |
-- |
|
Cover lens |
-- |
-- |
|
Surface hardness |
-- |
-- |
|
Cover lensColors |
-- |
-- |
|
Weight (LCM/TP+LCM) |
-- |
g |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
Dimension of 1.3 inch LCD module 240xRGBx240 SPI interface：
