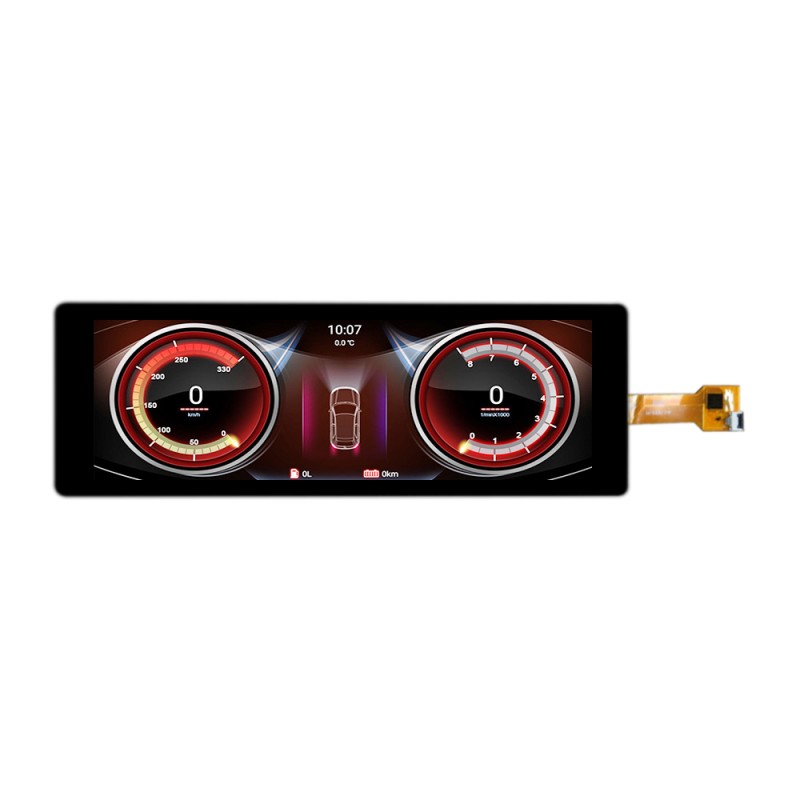

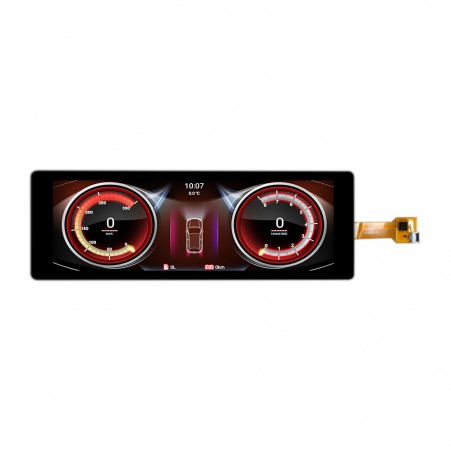

7.84inch 400*1280 lcd module 1000nits mipi touch screen monitor
7.84inch LCD normally black 400xRGBx1280 with MIPI interface lcd module touch panel for Navigation systems
Product advantages: high brightness lcd display
LCM Model:R78402-4001280MT
LCD Size:7.84inch
LCD Resolution:400x1280
DriverIC:NV3051
LCM Interface:MIPI
LCD AA:59.40x190.08
Display view angle:IPS
Display brightness:1000nits
Touch Screen:Project capacitive touch
7.84inch LCD modules 400x1280 tft lcd display parameters:
|
Item |
Specification |
Unit |
|
LCD screensize |
7.84 |
inch |
|
Display Mode |
Normally Black |
-- |
|
Resolution |
400x(RGB)x1280 |
Pixel |
|
Pixelarrangement |
RGB Vertical Stripe |
|
|
Viewingangle |
Full View |
- |
|
LCM Module outline |
67.80(W) x205.78(H) x4.6(T) |
mm |
|
LCD AA |
59.40(W) x190.08(H) |
mm |
|
DisplayColors |
16.7M |
colors |
|
Driver IC |
NV3051 |
- |
|
LCDInterface |
mipi |
-- |
|
Luminance |
1000 |
cd/㎡ |
|
Backlight Arrangement |
White LED |
-- |
|
Capacitive Touch panel |
PCAP |
|
|
Touch IC |
GT911 |
-- |
|
Touch point |
5finger point |
-- |
|
Touch structure |
GG |
-- |
|
Touch Interface |
IIC |
-- |
|
Cover lens |
GLASS |
mm |
|
Surface hardness |
≧6H |
-- |
|
Cover lensColors |
Black |
-- |
|
Weight (LCM/TP+LCM) |
/ |
kg |
|
Operating Temperature |
-20℃~ +70℃ |
Deg.c |
|
Storage Temperature |
-30℃~ +80℃ |
Deg.c |
